STMicroelectronics STM32F769NIH6

STM32F769NIH6 Microcontroller Summary from STMicroelectronics

The STM32F769NIH6, manufactured by STMicroelectronics, is a high-performance, single-core microcontroller unit (MCU) belonging to the STM32F7 series. Based on the ARM Cortex-M7 architecture, it operates at up to 216 MHz and offers advanced computational capabilities tailored for demanding embedded applications. With 2MB of embedded flash memory and a robust suite of peripherals, the STM32F769NIH6 is housed in a compact 216-ball TFBGA package (13x13 mm), making it suitable for high-density designs in industrial automation, consumer electronics, and graphical interfaces.

STM32F769NIH6 System Architecture and Core Attributes

At the heart of the STM32F769NIH6 lies the ARM 32-bit Cortex-M7 CPU, enhanced with a double-precision floating-point unit (DPFPU), an ART accelerator, and L1 cache. This setup permits zero-wait state execution from both embedded and external memories, yielding up to 462 DMIPS performance and powerful DSP instruction support. The integrated memory protection unit (MPU) and advanced clock management maximize system stability and efficiency. The architecture includes support for O-wait state execution, multiple boot modes, and flexible startup for system design versatility.

For real-time and graphical-heavy applications, the STM32F769NIH6 incorporates a hardware JPEG codec, the Chrom-ART Accelerator (DMA2D), an LCD-TFT controller supporting resolutions up to XGA, and a MIPI DSI host controller for 720p displays. Debugging interfaces such as SWD, JTAG, and the Embedded Trace Macrocell streamline development workflows.

STM32F769NIH6 Memory Capabilities and Management Strategies

The STM32F769NIH6 is equipped to handle memory-intensive tasks with its 2MB (2M x 8) flash organized in two low-power banks, allowing read-while-write operations. SRAM resources total 512KB (including 128KB TCM RAM for critical operations), supplemented with 4KB backup SRAM and 16KB instruction TCM RAM. Embedded backup registers and RTC are powered via dedicated VBAT supply, supporting reliable data retention and timekeeping in low-power modes.

For external memory expansion, the flexible memory controller (FMC) can interface with SRAM, PSRAM, SDRAM/LPSDR SDRAM, and NOR/NAND flash. The dual-mode Quad-SPI interface supports high-speed data access for demanding storage needs. This broad memory ecosystem enables design engineers to accommodate significant program and user data while maintaining optimal performance across power modes.

STM32F769NIH6 Analog and Digital Peripheral Functions

Supporting advanced signal processing and sensor interfacing, the STM32F769NIH6 features a comprehensive set of analog peripherals. These include 3 integrated 12-bit ADCs (totaling up to 24 channels, 2.4MSPS), 2 DACs, a temperature sensor, and digital filters for sigma-delta modulator inputs (DFSDM) with 8 channels and 4 filters. Integrated comparators and backup registers enhance measurement reliability.

On the digital side, the MCU offers up to 18 timers (13 x 16-bit, 2 x 32-bit), including low-power and advanced control timers with PWM, IC/OC, and encoder capabilities, pulse counter functionality, independent and window watchdogs, and a SysTick timer for system timekeeping. A general-purpose DMA controller (16 streams) enables efficient data movement with burst and FIFO support, maximizing bandwidth and minimizing CPU overhead.

STM32F769NIH6 Connectivity Options and Communication Protocols

The STM32F769NIH6 provides exceptional connectivity options tailored to modern embedded systems. With 28 communication interfaces, engineers can choose from up to four I2C (SMBus/PMBus), four USART/UART (up to 12.5 Mbit/s, with LIN/IrDA/modem/ISO7816 support), six SPIs (up to 54 Mbit/s), three CAN controllers (2.0B active), two SAI for audio, and SDMMC for external card interfaces.

Advanced networking is supported with a 10/100 Ethernet MAC (IEEE1588v2 hardware, MII/RMII interface), USB 2.0 High/Full-Speed OTG controllers (integrated PHY and ULPI), HDMI-CEC, and an 8- to 14-bit digital camera interface (DCMI) supporting up to 54MB/s. Integration of a true random number generator and CRC calculation unit further boosts security and data integrity in connected applications.

STM32F769NIH6 Power Management, Energy Saving Modes, and Reliability Aspects

Robust power supply management is a hallmark of the STM32F769NIH6. It operates across a 1.7V to 3.6V supply range for both MCU and I/O, with up to 166 5V-tolerant I/O pins. Multiple low-power modes (Sleep, Stop, Standby, backup via VBAT) are available, each with rapid wakeup timing tailored for energy-sensitive designs.

The MCU incorporates a suite of power supervision features, including brown-out, power-on, power-down, and voltage detection/reset circuits. An internal and external oscillator design, with factory calibration, guarantees stable operation from -40°C to +85°C ambient temperatures. Designers can leverage flexible power schemes and precise control over wake-up times, as well as hardware features for safe transitions between operating states.

STM32F769NIH6 Packaging Details, Environmental Specs, and Compliance Standards

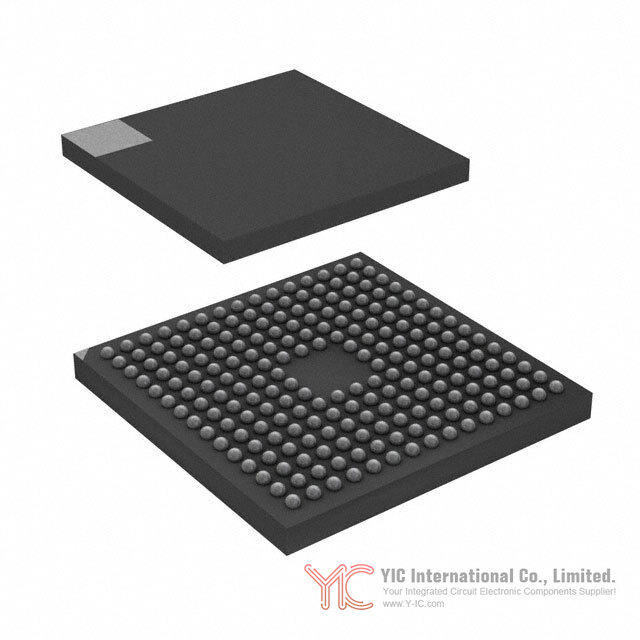

The STM32F769NIH6 comes in a surface-mount 216-ball TFBGA package (13x13mm, 0.4mm pitch), engineered for space-constrained, high-density PCB layouts. It is RoHS3-compliant, adheres to REACH regulations, and features a moisture sensitivity level (MSL) of 3 (168 hours). These characteristics ensure compatibility with global environmental standards and robust package reliability during reflow and assembly operations.

Comparable or Alternative Models to STM32F769NIH6

For engineers evaluating functionally similar MCUs or exploring migration paths, STMicroelectronics provides a consistent platform across the STM32F7 family. Potential alternatives include STM32F765xx, STM32F767xx, and STM32F768Ax series devices, which share architectural features such as the ARM Cortex-M7 core, similar memory structures, and comparable peripheral sets. Compatibility of pinouts, feature sets, and package options among these models can simplify BOM management and design transitions, depending on specific project requirements (e.g., RAM sizes, integration of DSI/LCD controllers, or communication options).

Conclusion

The STM32F769NIH6 from STMicroelectronics represents a flagship microcontroller solution for engineers requiring top-tier performance, advanced connectivity, and rich graphical capabilities in embedded applications. Its combination of processing power, memory flexibility, analog/digital peripherals, and broad communication options positions it as a versatile component for cutting-edge designs. Supported by robust package options and compliance certifications, as well as a proven migration path within the STM32F7 family, the STM32F769NIH6 delivers both technical depth and practical reliability for engineering teams focused on scalability, performance, and future-proof system architectures.
