STMicroelectronics STM32F107RBT6TR

Introduction to the STM32F107RBT6TR Microcontroller

The STM32F107RBT6TR, designed by STMicroelectronics, is a high-performance 32-bit microcontroller based on the ARM Cortex-M3 core. Belonging to the STM32F107xx series, this device is engineered for connectivity-centric applications, combining computational power with comprehensive communication interfaces. With 128 KB Flash memory, 64 KB SRAM, and a robust set of peripherals, the STM32F107RBT6TR in a 64-pin LQFP package targets engineers seeking reliable and versatile solutions for industrial, control, and embedded network designs.

Key Functions and Performance of the STM32F107RBT6TR

At its heart, the STM32F107RBT6TR features an ARM Cortex-M3 CPU running at up to 72 MHz, delivering high code efficiency and performance, with single-cycle multiplication and hardware division for real-time processing demands. The core integrates advanced interrupt handling via a nested vectored interrupt controller, supporting up to 67 maskable channels and flexible prioritization, ensuring deterministic system response for time-critical applications. These capabilities enable responsive operation in environments ranging from motor control to networked automation.

Internal Memory Structure and System Design of the STM32F107RBT6TR

This microcontroller offers 128 KB of Flash memory for code and data storage, complemented by 64 KB of zero-wait-state SRAM for rapid data handling. The STM32F107RBT6TR’s embedded memory architecture supports high-speed instruction access and efficient data throughput. Additional architectural resources include a cyclic redundancy check (CRC) unit for data integrity, extensive system control functions, and real-time features such as a SysTick timer for OS-level timing. The device’s memory and bus structure facilitate robust application execution with real-time constraints.

Comprehensive Peripheral Support in the STM32F107RBT6TR

Engineers benefit from an array of integrated peripherals in the STM32F107RBT6TR. This includes advanced timers—featuring up to four 16-bit general-purpose timers, an advanced control PWM timer, two watchdogs, and basic timers for DAC operation. The device’s analog front end comprises two 12-bit ADCs (16 channels each) and dual 12-bit DAC channels, enabling precise analog signal monitoring and generation, critical for industrial sensors, actuators, and closed-loop control. The robust DMA (Direct Memory Access) controller, offering 12 channels, enables autonomous data transfers to relieve CPU load in high-throughput scenarios.

Interface and Communication Options of the STM32F107RBT6TR

Tailored for modern connected applications, the STM32F107RBT6TR stands out in its communication interface portfolio. It provides:

Ethernet MAC (10/100) with dedicated DMA and IEEE 1588 support, ideal for real-time industrial networking.

USB 2.0 OTG Full Speed (device/host/controller), with embedded PHY and endpoint SRAM.

Two CAN 2.0B controllers for robust industrial fieldbus integration.

Up to five USART/UART interfaces, supporting modem control, smart card, LIN, IrDA, and multiprocessor modes.

Three SPI/I2S modules for fast serial communication and high-fidelity audio.

Two I²C controllers supporting SMBus/PMBus with DMA for high-reliability control and monitoring.

Most of these interfaces feature pin remapping, providing engineers with critical flexibility during PCB layout and system design, ensuring the optimal use of limited pin resources.

Energy Efficiency and Power Saving Features of the STM32F107RBT6TR

Efficient energy management is central to the STM32F107RBT6TR. Supporting a wide voltage range (2.0V–3.6V) and three low-power modes (Sleep, Stop, Standby), it is well suited for battery-powered and energy-conscious applications. Integrated power-on reset (POR) and programmable voltage detector (PVD) features safeguard operation during voltage fluctuations, while the flexible internal regulator supports various system power states with fast wake-up times.

Package Details, Pin Configuration, and System Integration for the STM32F107RBT6TR

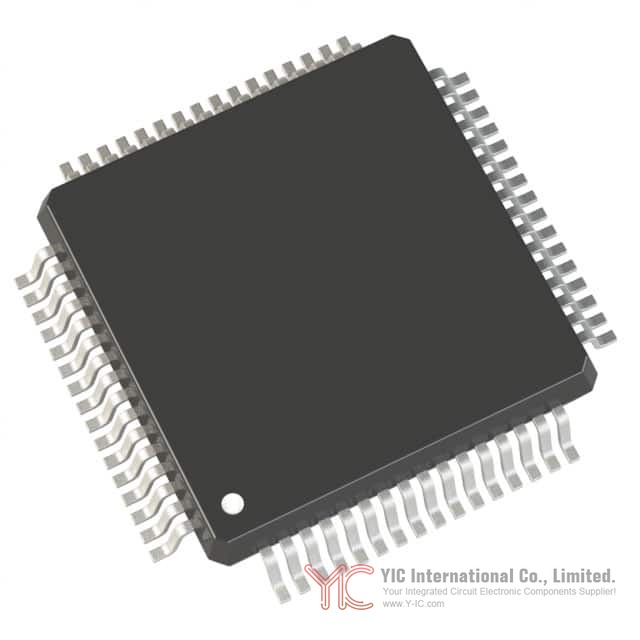

The STM32F107RBT6TR is offered in a compact 64-pin LQFP (10x10 mm) package, optimized for dense board layouts while maintaining accessibility to a broad range of I/O and peripheral signals. The device provides up to 80 I/O ports—most of which are 5V tolerant and support alternate function mapping. This extensive pin remapping, combined with robust ESD and EMI performance, enables design reliability even in electrically noisy industrial environments. Thorough documentation on pin definitions, electrical constraints, and board layout guidelines are available, streamlining integration into varied system architectures.

Electrical Specifications and Operating Conditions of the STM32F107RBT6TR

The STM32F107RBT6TR is rated for operation from -40°C to +85°C, serving industrial and extended embedded environments. It is compliant with RoHS and REACH standards, underscoring suitability for markets with stringent environmental requirements. Absolute maximum and recommended operating conditions are provided in detail, empowering engineers to appropriately derate and protect systems. The device exhibits robust ESD, EMI, and latch-up immunity, promoting reliable long-term operation in demanding installations.

Intended Uses and Engineering Scenarios for the STM32F107RBT6TR

The feature set and connectivity options position the STM32F107RBT6TR as an optimal choice for:

Industrial automation and PLCs with real-time Ethernet networking

Motor drive control systems needing advanced timers and analog feedback

Medical and handheld equipment requiring deterministic response and extensive connectivity

Audio endpoints or gateways using integrated I2S and USB with synchronized audio clocks

Alarm monitoring, HVAC, and access control utilizing robust fieldbus (CAN/LIN) communications

In practice, the STM32F107RBT6TR’s diverse peripherals streamline bill of materials and hardware complexity for unified designs demanding both processing power and interface versatility.

Comparable or Substitute Models for the STM32F107RBT6TR

When evaluating drop-in or functional alternatives to the STM32F107RBT6TR, consider:

Other STM32F107xx family variants, which offer different memory sizes and package options with full pin-to-pin, firmware, and peripheral compatibility.

The STM32F105xx series, which shares most features but lacks Ethernet MAC, suitable for applications not requiring network connectivity.

STM32F103xx series (low/medium/high density): Offers software compatibility and similar peripheral sets, providing flexibility in matching feature requirements and price points.

For new designs, reviewing STMicroelectronics’ STM32F4 or STM32F7 series may provide advanced processing and further integrated connectivity for future-proofing.

When migrating to or from the STM32F107RBT6TR, always verify peripheral mapping, package dimensions, and timing characteristics to ensure seamless design continuity.

Conclusion

The STM32F107RBT6TR microcontroller delivers a balanced combination of high-performance processing, rich connectivity, and advanced on-chip peripherals in a versatile 64-pin package. Its wide voltage and temperature operating ranges, extensive communication interfaces—including Ethernet, CAN, and USB—paired with robust analog and timing resources, make it a centerpiece for demanding automation, control, and networked embedded applications. With comprehensive documentation and a proven STM32 ecosystem, the STM32F107RBT6TR equips design engineers and procurement professionals with the reliability, flexibility, and scalability needed to address today’s embedded connectivity challenges.
