STMicroelectronics STM8S208C6T3

STM8S208C6T3 Microcontroller Summary

The STM8S208C6T3, produced by STMicroelectronics, is a high-performance member of the widely adopted STM8S family of 8-bit microcontrollers. Featuring 32 KB of embedded Flash program memory in a compact 48-pin LQFP package, the STM8S208C6T3 targets cost-sensitive designs requiring robust real-time processing, high integration, and long product lifecycle support.

Engineers selecting STM8S208C6T3 will benefit from its 24 MHz CPU clock, advanced Harvard architecture core, comprehensive set of analog and digital peripherals, and flexible supply voltage operation from 2.95V to 5.5V. The device also integrates features aimed at reducing overall system cost, such as on-chip true EEPROM, advanced internal oscillators, and a clock security system.

STM8S208C6T3 Core Design and Performance Insights

At the heart of the STM8S208C6T3 lies an 8-bit advanced STM8 core optimized for code efficiency and ease of programming. With its 3-stage pipeline and 32-bit wide program bus, most instructions execute in a single clock cycle, delivering up to 20 MIPS throughput at the maximum 24 MHz frequency.

The instruction set boasts 80 commands and 20 addressing modes—including powerful indexed indirect and stack-relative addressing—allowing efficient manipulation of both code and data. The core registers consist of X and Y index registers (16-bit), an 8-bit accumulator, a 24-bit program counter for extended linear memory access, and a 16-bit stack pointer, all contributing to robust real-time performance and compact code generation.

STM8S208C6T3 Embedded Memory and Data Protection Capabilities

The STM8S208C6T3 is engineered for flexible code and data management. It provides:

32 KB high-density Flash program memory, with support for read-while-write operations.

True data EEPROM of up to 2 KB endurance rated for 300,000 write/erase cycles.

6 KB RAM for fast, local data storage.

STM8S208C6T3 incorporates advanced memory protection mechanisms to safeguard code and critical parameters in the field:

Dual-level write protection (MASS and UBC) can restrict or fully secure portions of Flash and EEPROM against accidental or malicious overwrites.

Read-out protection disables external reading or writing of program/data memory during debug/programming sessions, greatly enhancing IP and application security.

STM8S208C6T3 Built-in Clock, Power, and Reset Controls

Flexible and robust clocking options are provided for diverse application requirements:

Multiple master clock sources: high-speed external/crystal oscillators (up to 24 MHz), internal precision RC oscillators (16 MHz), and a low-speed 128 kHz oscillator for ultra-low power modes.

Programmable prescalers enable optimization of performance versus power consumption.

Advanced clock security system (CSS) ensures safe operation, with glitch-free clock switching and automatic fallback to internal oscillators upon HSE failure.

The STM8S208C6T3 integrates sophisticated power management strategies, supporting several low-power modes (Wait, Active-Halt with regulator on/off, and Halt), allowing designers to meet stringent energy budgets. A permanently active, low consumption power-on/power-down reset system, combined with user-configurable voltage supervisors (brownout reset), further enhances reliability for mission-critical embedded systems.

STM8S208C6T3 Extensive Peripheral and Communication Options

This device integrates a rich suite of peripherals that addresses both control and connectivity challenges for modern embedded designs, including:

Three advanced timers (16-/8-bit) with PWM, input capture, output compare, and break/encoder support catering to motor control, lighting, and other precision timing applications.

A 10-bit SAR ADC with up to 16 muxed input channels, fast 14-cycle conversion time, single/continuous/concurrent modes, and dedicated analog reference pin on larger devices.

Dual independent watchdog timers (Window and Independent) providing application reliability against runaway code and hardware faults.

For communication tasks, the STM8S208C6T3 features:

beCAN controller fully compliant with CAN 2.0A/B, supporting high-speed (1 Mbit/s) communication for automotive and industrial networks, and integrating advanced message filtering and time-triggered options.

Two UARTs with advanced features: LIN 2.1 master/slave support, IrDA smartcard mode, and synchronous/asynchronous operation up to 1 Mbit/s.

High-speed SPI (10 Mbit/s) and I²C interfaces (up to 400 Kbit/s) for standard serial communication with external peripherals.

STM8S208C6T3 Energy-Saving Functions and Low Power Design

Energy-efficient design is intrinsic to the STM8S208C6T3. Its multi-mode low power management scheme allows the MCU to transition between active and various deep sleep states, with fast and flexible wakeup sources including auto-wake timers, interrupts, or reset events.

Each peripheral's clock can be gated individually, minimizing static and dynamic power consumption. The integrated auto wake-up counter enables rapid system response from deep sleep with negligible energy overhead, making the STM8S208C6T3 ideal for power-constrained, battery-operated environments.

STM8S208C6T3 Pin Configuration, Packaging Variants, and Technical Dimensions

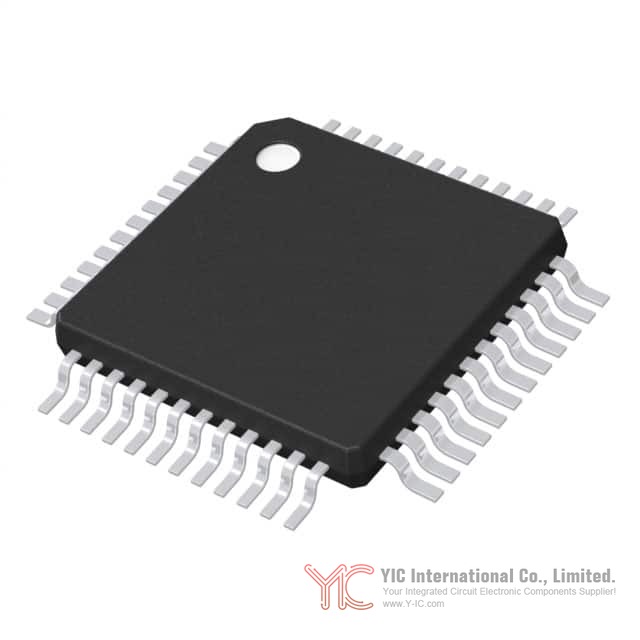

The STM8S208C6T3 is offered in a space-efficient 48-pin LQFP package (7 × 7 mm), with detailed pinout and alternate function remapping capabilities. High-sink pins and true open-drain outputs enable direct drive of loads common in industrial and consumer applications.

Comprehensive mechanical data, recommended PCB footprints, and thermal parameters are specified, allowing straightforward integration into dense multi-layer designs. The device’s RoHS3 and REACH compliance, plus robust ESD and latch-up specifications, support use in environments with demanding regulatory or reliability criteria.

STM8S208C6T3 Electrical Properties and Engineering Guidelines

To ensure robust operation across target applications, the STM8S208C6T3 defines:

Absolute maximum and recommended operating ratings, including supply and I/O voltages, maximum current draws, and thermal constraints.

Detailed parameters for clock, analog, and memory performance, including ADC input/output characteristics, oscillator startup and stability data, and memory write endurance across temperature.

Guidance on PCB layout, such as decoupling requirements, reset protection, and electromagnetic compatibility, promoting high signal integrity and noise immunity.

Electrical testing and characterization (EMC/EMI, ESD, and latch-up) have been carefully validated in accordance with IEC, SAE, and JEDEC standards.

STM8S208C6T3 Development Support Recommended Tools and Software

Development on STM8S208C6T3 is supported by a mature toolchain:

Full-featured hardware emulators and in-circuit debuggers (e.g., STice system) deliver advanced breakpoints, profiling, and memory access for efficient development and troubleshooting.

Multiple free software options including the ST Visual Develop (STVD) IDE, ST Visual Programmer (STVP), and industry-standard C and assembly toolchains (Cosmic, Raisonance).

Production programming tools (single, gang, and automated systems) are available for scalable manufacturing.

Alternative and Substitute Models for STM8S208C6T3

When evaluating the STM8S208C6T3, engineers can consider devices from the broader STM8S20xxx family for different memory and package options. For instance, variants such as the STM8S208K6T6 or STM8S208MBT6 offer higher pin-counts or different Flash capacities, sharing the same core architecture, peripheral set, and family compatibility.

Alternatively, the STM8S207xx series provides similar features but omits CAN, which may suit cost-focused applications not requiring automotive/industrial fieldbus support. For designers requiring ARM Cortex-based performance or advanced connectivity, the STM32F0/F1 families from STMicroelectronics may be considered, though with migration to 32-bit platforms and corresponding changes in core, peripherals, and software environment.

Conclusion

The STM8S208C6T3 from STMicroelectronics remains a reference 8-bit MCU solution for embedded applications where cost, robustness, and a balanced peripheral mix are key. It stands out with its high code efficiency, true EEPROM, integrated CAN, advanced power management, and security features, all backed by a comprehensive tool ecosystem and long-term product support. With its flexible configuration options and electrical robustness, the STM8S208C6T3 is well positioned for deployment in automotive, industrial, and consumer segments, ensuring reliable operation even in the most demanding environments.
