STMicroelectronics STM32L071K8U6

STM32L071K8U6 Product Summary

The STM32L071K8U6 by STMicroelectronics is a member of the STM32L071xx family of ultra-low-power microcontrollers, built around the Arm Cortex-M0+ core. Featuring a single-core operating at up to 32 MHz, this device integrates 64 KB of Flash memory, 20 KB of SRAM, and is offered in a compact 32-pin UFQFPN package (5x5 mm). Designed for demanding applications such as smart metering, healthcare equipment, industrial sensors, and remote controls, the STM32L071K8U6 provides a balance of high computational efficiency and ultra-low-power consumption across a wide supply voltage range (1.65 V to 3.6 V), and an extended temperature range from -40°C to 125°C.

STM32L071K8U6 Core Architecture and Main Features

At the heart of the STM32L071K8U6 is the Arm Cortex-M0+ 32-bit RISC processor, delivering up to 0.95 DMIPS/MHz. The core includes a Memory Protection Unit (MPU) and is supported by an optimized interconnect matrix, allowing efficient parallel operations between the CPU, memory, and on-chip peripherals. Engineers benefit from a deterministic interrupt architecture, including a Nested Vectored Interrupt Controller (NVIC) handling 32 maskable channels and 4 priority levels, ensuring fast and predictable response times in real-time applications.

For robust system management, the MCU offers dual power-on modes with built-in brownout reset (BOR), power-on/power-down reset (POR/PDR), and programmable voltage detectors (PVD). These features support reliable system startup and operation, even under erratic supply conditions—essential for battery-powered or energy-harvesting designs.

STM32L071K8U6 Energy-Efficient Performance

Ultra-low-power operation is a hallmark of the STM32L071K8U6. Its dynamic voltage scaling enables engineers to optimize energy consumption based on application performance requirements. The device offers three scalable performance ranges:

Range 1: 1.71–3.6 V, CPU up to 32 MHz

Range 2: Full voltage range, CPU up to 16 MHz

Range 3: Full voltage range, CPU up to 4.2 MHz

Multiple low-power modes are available—including Sleep, Low-power Run, Low-power Sleep, Stop (with/without RTC), and Standby (with/without RTC)—providing current consumptions as low as 0.29 μA in Standby mode. The wakeup time from low-power modes is minimized (5 μs from Flash memory), enabling prompt responsiveness for event-driven applications.

Critical peripherals, such as RTC, comparators, and specific communication interfaces, can operate and wake the device from deep sleep or stop modes, ideal for applications requiring long battery life and frequent state transitions.

STM32L071K8U6 Built-In Memory and Data Security

The STM32L071K8U6 integrates a comprehensive memory architecture:

64 KB dual-bank Flash program memory with ECC and read-while-write operation

20 KB SRAM with zero wait-state access

6 KB Data EEPROM with ECC

20-byte backup registers retained in Standby mode

The dual-bank Flash and EEPROM architecture allows code execution and data logging even during write operations—supporting firmware upgrades and robust data retention strategies. Engineers can leverage advanced option bytes to configure granular memory protections (readout and write protection), and a firewall mechanism isolates sensitive code and data segments, enhancing security in critical applications.

STM32L071K8U6 Peripheral Interfaces and Connectivity

The STM32L071K8U6 offers a rich set of peripherals suitable for numerous interfacing requirements:

Up to 84 fast I/Os (78 I/Os are 5V tolerant in larger package variants)

4 USARTs (with SmartCard, IrDA, LIN support), one low-power UART (LPUART)

Up to 3 I²C interfaces (with SMBus, PMBus, analog/digital filtering, wakeup capability)

Up to 2 high-speed SPI interfaces (16 Mbit/s, with I2S audio support)

7-channel DMA controller

These interfaces support advanced modes such as multiprocessor communication, auto baud-rate detection, and master/slave configuration for various industrial and consumer electronic systems. The integrated DMA accelerates data transfers between peripherals and memory, minimizing processor intervention for real-time streaming and control tasks.

Extended interrupt/event controller features allow flexible event-driven design, with up to 29 configurable edge-detect lines routed from GPIOs and key peripherals.

STM32L071K8U6 Analog Functions and Timer Capabilities

Analog integration is a crucial advantage for sensor and measurement applications. The STM32L071K8U6 includes:

One 12-bit ADC (up to 16 channels, extended to 16 bits via hardware oversampling, up to 1.14 Msps)

Factory-calibrated temperature sensor, with linear output and calibration values

Two ultra-low-power comparators (window mode, wakeup capability)

Internal voltage reference (VREFINT), accessible via ADC and external pin

The ADC supports scan modes, auto-shutdown, analog watchdog, and timer-triggered conversions—making precise, low-power measurements possible even in restricted supply environments. To ensure accuracy, engineers should observe PCB parasitic capacitance management and supply decoupling best practices as detailed in the reference diagrams.

Timers include:

Four synchronizable general-purpose 16-bit timers (TIM2/TIM3/TIM21/TIM22)

One low-power timer (LPTIM) for event counting in Stop mode

Two basic timers (TIM6/TIM7), SysTick for OS support

Independent and window watchdogs for fail-safe and reliability supervision

These timers support PWM, input capture, output compare, one-pulse mode, and quadrature encoder interfacing, facilitating motion control and time-based automation.

STM32L071K8U6 Package Options and Physical Integration

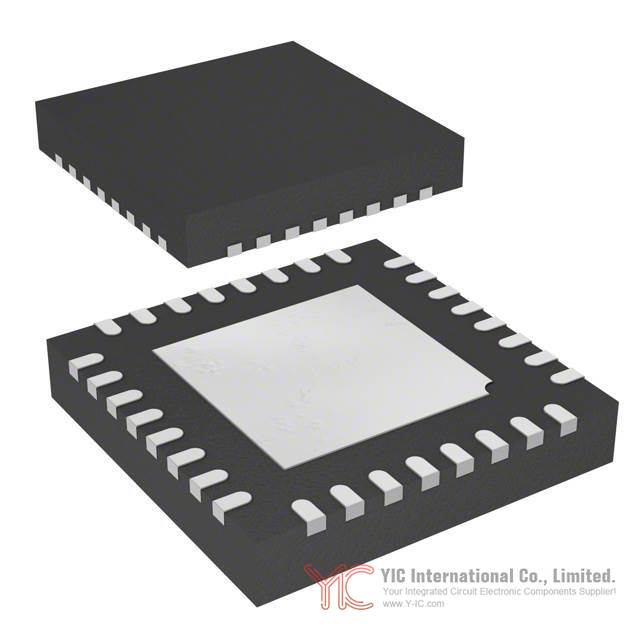

The STM32L071K8U6 is provided in a 32-pin UFQFPN (Ultra Thin Fine Pitch Quad Flat No-Lead) package with a 5x5 mm footprint. The package facilitates compact PCB designs suitable for portable and space-constrained applications. For systems requiring greater I/O resources or specific pinouts, the broader STM32L071xx family offers variants in LQFP (32, 48, 64, 100), UFBGA, TFBGA, and WLCSP (Chip-Scale) packages.

Each package is compliant with RoHS and ECOPACK2 standards, supporting environmentally friendly design initiatives. Marking conventions and recommended footprints are provided to ensure proper assembly and traceability. For optimal thermal management, designers should refer to the thermal resistance values and layout guidelines corresponding to their chosen package.

STM32L071K8U6 Electrical Properties and Thermal Performance

Engineers must consider electrical ratings and mission profiles for reliable circuit integration. The device operates over:

Voltage: 1.65 to 3.6 V (recommended to power VDD and VDDA from same source, with up to 300 mV differential tolerance)

Temperature: -40°C to 125°C

Maximum I/O drive: ±8 mA standard, up to ±15 mA (non-standard conditions)

Current consumption values are rigorously characterized for various modes, allowing system architects to predict battery life and efficiency. On-chip and peripheral supply current details are provided, with operating modes ranging from full performance (Run) to deep hibernation (Standby). The device sustains reliable data retention across low-voltage operation and features built-in ESD and latch-up immunity for industrial-grade robustness.

Clocking options encompass multiple internal RC oscillators (HSI16, MSI, LSI), external crystals (HSE 1-25 MHz, LSE 32.768 kHz), and integrated PLL for flexible timing configuration. Clock security systems automatically mitigate oscillator failures, maintaining system reliability.

STM32L071K8U6 Alternative or Substitute Model Options

Within the STMicroelectronics portfolio, several models parallel or extend the capabilities of the STM32L071K8U6. Engineers seeking alternative package types, increased Flash, or SRAM capacities should consider the broader STM32L071xx family (such as STM32L071xB for larger memories or STM32L071xZ for extended I/O options). Devices across the STM32L0 series maintain high pin-to-pin and software compatibility, facilitating quick migration for scaling applications or ensuring long-term design continuity.

For applications requiring advanced processing or integrated features (LCD drivers, USB controllers), STM32L072xx or STM32L082xx may be viable replacements, offering similar ultra-low-power performance with extended peripheral sets. The device's compatibility within the STM32L0 platform supports engineering flexibility and procurement robustness, mitigating supply chain risks.

Conclusion

The STM32L071K8U6 uniquely combines ultra-low-power architecture, broad connectivity, robust analog integration, and flexible memory management in a miniature, application-optimized package. Its feature set empowers engineers to design energy-efficient, reliable solutions for industrial, medical, consumer, and metrology domains. Careful attention to system electrical parameters, appropriate peripheral selection, and package optimization ensures best-in-class performance and long-term viability.

For product selection engineers and procurement officers, STM32L071K8U6 offers a compelling blend of cost efficiency, functional richness, and scalability within the proven STM32L0 platform, supported by industry-standard development tools and documentation.
