TX2SA-12V Panasonic Electric Works Relay Product Summary

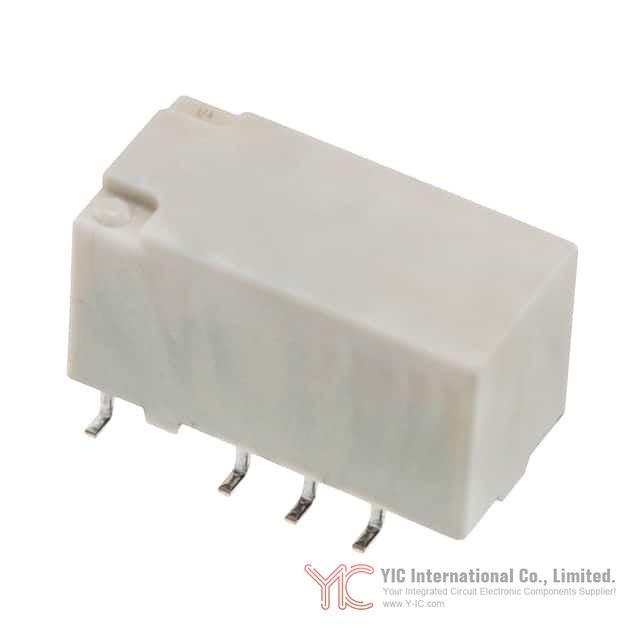

In telecom and signal switching designs, the selection of a reliable relay is critical for ensuring stable long-term operation. The TX2SA-12V relay from Panasonic Electric Works stands out for its robust feature set tailored to demanding environments. As a Dual Pole Double Throw (DPDT) device rated at 2A and operating on a 12V coil voltage, this relay offers reliable switching for applications requiring precise control and durability. Its compact surface-mount profile facilitates space-saving design, making it suitable for systems where form factor and high density board layouts are essential considerations. Notably, the series aligns with RoHS compliance, supporting eco-friendly system design.

Primary Electrical and Mechanical Attributes of the TX2SA-12V Relay

The technical backbone of the TX2SA-12V includes a high breakdown voltage of 2,000 V between contact and coil, and 1,000 V across open contacts, providing insulation integrity ideal for telecom and industrial signal circuits. Surge resistance is exemplary, meeting both FCC and Bellcore surge requirements by withstanding up to 2,500 V pulses between coil and contact and 1,500 V between open contacts. Efficiency is underlined by its low nominal operating power of just 140 mW, with a minimum of 79 mW, resulting from a specialized polar magnetic circuit seesaw balance mechanism. Rated for a contact capacity of 2A at 30V DC, the relay is designed for both switching robustness and longevity. Vibration and shock resistance metrics further reinforce its suitability, with functional shock resistance at 750 m/s² and vibration endurance from 10 to 55Hz at a 3.3 mm amplitude, ensuring durability in automotive and industrial deployments.

Contact Composition and Reliability Factors in the TX2SA-12V

Contact reliability is a standout of the TX2SA-12V, achieved with gold-clad twin crossbar contacts for low-resistance and consistent switching over time. For signal circuits and low-level analog loads (up to 10V DC, 10mA), options featuring AgPd contacts enhance performance for specific low-energy environments. Engineers requiring precise low-load switching can select TX2SA-12V-1 variants, enabling flexibility for circuit optimization. Reliability testing data indicates strong electrical and mechanical life, with consistent operate and release timing across coil voltages under test conditions.

Installation Methods and Structural Design for Integrating TX2SA-12V

Space and mounting flexibility are central to the TX2SA-12V’s appeal. Measuring 15.0 × 7.4 × 8.2 mm, this relay supports dense PCB layouts. Multiple terminal variants are available, including standard PC board, self-clinching, and surface-mount types (SA: low-profile, SL: high connection reliability, SS: space-saving), all catering to differing assembly requirements. Options for either tube or tape-and-reel packing support automated insertion and high-volume assembly. The sealed body allows post-solder washing, an advantage for maintaining board cleanliness and ensuring relay longevity in electronics subject to environmental contaminants.

Use Cases for Deploying the TX2SA-12V Relay

The TX2SA-12V finds value in a wide spectrum of engineering scenarios. Core usage spans telecommunications systems (xDSL and general transmission equipment), measurement instruments, security setups, home and A/V devices, automotive electronics, and medical equipment. Its high isolation, compact form factor, and strong resistance to electrical and mechanical stress make it especially suited to environments where signal integrity and component resilience directly impact device performance and user safety.

Reference Specifications and Performance Data for TX2SA-12V

Testing and reference data for the TX2SA-12V detail its maximum switching capacity, electrical and mechanical life under varied loading scenarios, coil temperature rise at typical operating temperatures, and consistent performance across installation atmospheres. Electrical life testing under a 2A 30V DC resistive load shows robust endurance, and mechanical life assessments at up to 180 cycles per minute affirm suitability for repeated operations. The relay’s high-frequency characteristics assure reliable isolation and low insertion loss, lending itself to high-fidelity signal applications. Notably, surface-mount variants retain these key performance attributes, ensuring design flexibility without trade-offs.

Practical Use in Engineering Handling, Installation, and Safety Tips for TX2SA-12V

Installation best practices are essential for safeguarding the TX2SA-12V’s longevity and function. During automated assembly, chucking pressures should not exceed 4.9 N on the main axis and 9.8 N in other directions to prevent mechanical stress. Engineers should avoid concentrated pressure on specific relay areas to maintain internal mechanics. The relay orientation and packaging for automated insertion are established to optimize assembly and reduce processing defects. Reference to Panasonic’s broader guidelines for signal relays is recommended for ensuring robust integration and operational safety.

Alternative or Replacement Options for the TX2SA-12V Relay

Given the TX2SA-12V’s order discontinuation status as of August 31, 2011, engineers and procurement professionals may need to consider available alternatives within the Panasonic TX series. Depending on required coil voltage, contact material, and mounting format, close equivalents may include other TX2SA relays with varying coil ratings or the SX series for specialized low-level loads. For designs focusing on improved low-level analog switching, variants with AgPd contacts or SX relay formulations are recommended. Carefully reviewing coil, switching current, and terminal configurations will ensure appropriate device replacement and continued system performance.

Conclusion

: selection guidance for TX2SA-12V Panasonic Electric Works relay

The TX2SA-12V relay from Panasonic Electric Works presents a solid solution for engineers facing high-voltage isolation, compact design, and durable switching requirements in telecom and industrial applications. Its feature-rich specification, variety of mounting options, and proven reliability offer design flexibility and long-term value. Where procurement or redesign brings about the need for alternatives, a review of available TX series variants and attention to mounting and contact specifications will help sustain system integrity. For those seeking high-performance, space-efficient relays for sensitive signal circuits, the TX2SA-12V remains a benchmark in its class.
