Murata Electronics PRF15BB103RB6RC

Product Summary Murata Electronics PRF15BB103RB6RC Thermistor

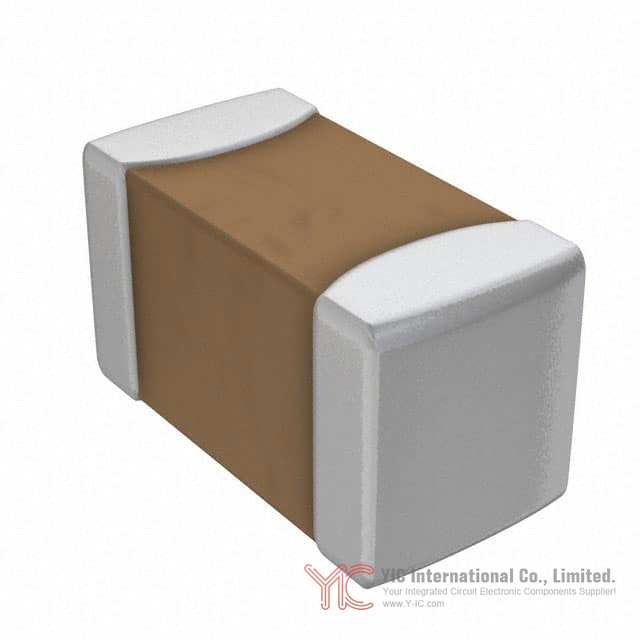

The Murata Electronics PRF15BB103RB6RC is a precision 0402-size (1005 metric) PTC thermistor designed specifically for overheat sensing and circuit protection applications. Employing the renowned PRF Series technology, this thermistor delivers rapid, accurate sensing of elevated temperatures, safeguarding sensitive components such as FETs and power ICs from thermal damage. With a nominal resistance of 10 kΩ and a tolerance of ±50%, its compact form factor supports high-density designs while offering robust performance under demanding conditions.

Main Attributes of PRF15BB103RB6RC and the PRF Series

PRF15BB103RB6RC, as part of Murata’s PRF Series, stands out for its accelerated thermal response and wide temperature sensing range. The device features a low-profile chip structure ideal for minimizing PCB real estate, which is supported by high reliability and compliance with international safety standards (UL, VDE, TUV). Engineering teams will appreciate its RoHS and halogen-free composition, supporting sustainable design initiatives. The device’s resistance behavior at sharp temperature thresholds delivers outstanding noise immunity, enabling precise, repeatable detection of overheat events in complex circuits.

Common Application Fields for PRF15BB103RB6RC

Developed for versatility, PRF15BB103RB6RC is suited for a broad spectrum of electronic assemblies. Automotive applications—such as LED lamp modules, navigational electronics, and electric motors—benefit from its precise thermal monitoring. Additional usage encompasses LED bulbs, smartphones, laptops, tablets, battery packs, and power supply units. Importantly, its consistent performance across temperatures makes it a preferred choice for integration in motor controllers and other heat-intensive subsystems.

Working Principle and Electrical Properties of PRF15BB103RB6RC

PTC (Positive Temperature Coefficient) thermistors like the PRF15BB103RB6RC exhibit a marked increase in resistance at a defined temperature threshold, providing a simple yet powerful method for overheat detection. In practice, this behavior is exploited for circuit protection: the thermistor can be deployed in series with heat-generating components, triggering a protection response once overheating occurs. The 10 kΩ nominal resistance specification ensures compatibility with standard interface circuits, and the typical sharp resistance transition facilitates straightforward system design.

Temperature-Resistance Behavior and Circuit Implementation

Engineers evaluating the PRF15BB103RB6RC should note its resistance-temperature curve, which features a rapid resistance rise above the transition point—a critical property for error-free overheating detection. This distinct feature supports use in multi-point safety circuits, where several thermistors are connected in series to reduce IC port count and simplify board layout. The device’s resilience to spurious electrical noise further enhances its value in advanced electronic environments.

Mechanical Features and Environmental Ratings of PRF15BB103RB6RC

The PRF15BB103RB6RC leverages a robust construction, utilizing a BaTiO₃ semiconductive ceramic core combined with Ag thick film electrodes finished in Ni and Sn plating. Designed to maintain electrical and thermal stability, the device is specified for installation in standard glass-epoxy PCB environments and endures routine handling and soldering practices when recommended protocols are observed. Environmental ratings support use in controlled conditions, with storage from -10°C to +40°C and humidity below 75% RH to preserve solderability and device integrity.

Physical Dimensions and Suggested PCB Footprint for PRF15BB103RB6RC

With its 0402 case size, PRF15BB103RB6RC enables compact circuit design and density optimization—especially in portable or space-constrained electronics. For optimal mounting, engineers should adhere to Murata’s recommended land pattern dimensions. Board placement should avoid stress concentration areas and maintain sufficient spacing from separation lines, perforation holes, and aggressive mechanical stress zones to maximize reliability.

Packing Methods and Handling Recommendations for PRF15BB103RB6RC

Murata Electronics provides PRF15BB103RB6RC in tape-and-reel packaging conforming to industry standards for automated assembly. Plastic tape cavities are continuously sealed, ensuring integrity during transport and storage. Pull strength and peeling force specifications are defined to prevent handling-induced damage, while reeling includes appropriately marked leader and trailer units for efficient line setup. Proper packaging labeling ensures traceability during inventory management.

Installation Steps and Soldering Safety Tips for PRF15BB103RB6RC

For successful assembly, PRF15BB103RB6RC should be mounted using reflow soldering only; flow soldering is expressly not recommended. Solder paste thickness between 0.10 and 0.15 mm is optimal, with alloy compositions such as Sn:Pb=63:37 or Sn:Ag:Cu=96.5:3.0:0.5 wt% preferred to maintain bonding integrity. Rosin-type flux is mandatory, and strong acidic or water-soluble variants are discouraged to prevent adverse effects. Excessive solder volume, rapid thermal cycling, and strong mechanical forces must be avoided to mitigate risks of cracking or electro-mechanical failure.

Reliability Aspects of PRF15BB103RB6RC in Technical Designs

Engineers integrating PRF15BB103RB6RC should ensure deployment within the recommended operating environment—normal temperature, humidity, and pressure. Use beyond specified conditions—including exposure to corrosive gases, high humidity, or vibration—can compromise device function. For critical applications with heightened reliability demands (medical, aviation, disaster prevention), consult Murata on suitability and establish appropriate fail-safe features to prevent system-level damage from abnormal thermistor behavior. Board evaluation under final layout and mounting conditions is advised to confirm product performance.

Alternative or Substitute Models for PRF15BB103RB6RC

Murata’s PRF Series encompasses multiple PTC thermistor models catering to different nominal resistance values and package sizes. Within comparable application spaces, devices such as PRF15BB47RB6RC (47 kΩ, 0402 size) or PRF18BB103RB6RC (10 kΩ, 0603 size) may serve as functional replacements, provided electrical and mechanical compatibility is maintained. Engineers may also investigate within Murata’s wider POSISTOR® series for devices matching design requirements in resistance, form factor, and temperature response.

Conclusion

: Best practices for PRF15BB103RB6RC deployment and selection

The Murata Electronics PRF15BB103RB6RC PTC thermistor is a critical enabler of robust, miniaturized circuit protection schemes across automotive, consumer, and industrial electronics. Its unique resistance profile, compact form factor, and certified reliability make it a strong candidate for designs demanding regulated thermal management and high component density. To maximize system stability and lifespan, closely follow recommended handling and mounting protocols, and consider equivalent PRF Series models where necessary to match evolving design requirements. By integrating PRF15BB103RB6RC with attention to specification and environmental guidelines, procurement and engineering teams can ensure optimal performance in high-value electronics applications.
