Microchip Technology MIC4420YMM-TR

Mfr. Part

Current stock at Y-IC: 2620 units (rolling inventory, subject to prior sale)

Manufacturer

Micrel / Microchip Technology

Y-IC is a quality distributor for Microchip brands. We provide genuine parts, fast delivery, and professional technical support to help you choose the right driver and get to production quickly.

Detailed Description

Single-channel, low-side MOSFET gate driver

Non-inverting input, drives N-channel or P-channel MOSFET gates

Very high peak output current: 6 A source / 6 A sink

Wide supply range: 4.5 V to 18 V

Fast edges: 12 ns typical rise, 13 ns typical fall

TTL/CMOS-compatible logic thresholds (VIL 0.8 V, VIH 2.4 V)

Industrial/automotive-grade junction temperature range: -40°C to +150°C (TJ)

Small outline 8-MSOP package, RoHS3 compliant

Mounting: Surface Mount (SMD)

Key Features

Single low-side gate driver, non-inverting logic

6 A peak source and 6 A peak sink for strong gate charge control

4.5–18 V supply supports 5 V, 12 V, and intermediate rails

Fast transition times (12/13 ns typ) reduce switching losses

TTL/CMOS compatible input thresholds for easy MCU/logic drive

Operates over -40°C to +150°C junction temperature

Works with N-channel and P-channel MOSFETs on the low side

Compact 8-MSOP footprint for dense layouts

Tape & Reel packaging for automated assembly

RoHS3 compliant lead finish

Key Advantages

High peak current quickly charges/discharges large MOSFET gates, reducing turn-on/turn-off time and improving efficiency

Non-inverting input simplifies logic interface; no extra inversion stage needed

Wide supply range covers common driver rails without external regulators

Fast edges lower switching losses in high-frequency power stages

Small package saves board space while maintaining thermal performance

Broad operating temperature range suits rugged, high-ambient environments

Packaging

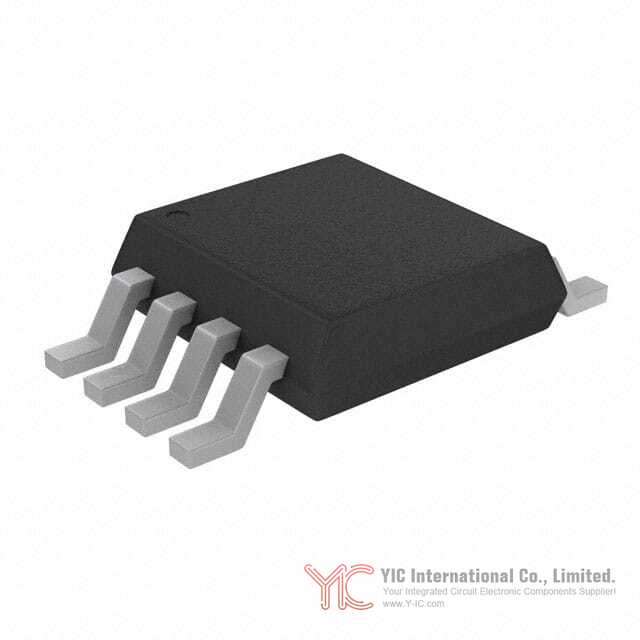

Device package: 8-MSOP (3.00 mm body width, approx. 0.65 mm lead pitch, 8 leads)

Supplier device package: 8-MSOP

Shipping format: Tape & Reel (TR) for pick-and-place

Materials and finish: Molded epoxy encapsulation; copper leadframe with Pb-free matte tin plating; RoHS3 compliant

Mounting: Surface-mount; compatible with standard reflow profiles

Size and footprint: Compact 8-pin MSOP footprint for tight layouts

Pin configuration: Single input, single output, VDD, GND, and auxiliary pins per datasheet (verify exact pinout on the datasheet before layout)

Thermal characteristics:

- Operating junction temperature: -40°C to +150°C (TJ)

- For detailed θJA/θJC values and derating vs. PCB copper area, see the datasheet

Electrical properties (summary):

- Supply voltage: 4.5 V to 18 V

- Input type: Non-inverting; logic thresholds VIL 0.8 V, VIH 2.4 V (TTL/CMOS compatible)

- Output drive: 6 A source / 6 A sink peak

- Rise/Fall time (typical): 12 ns / 13 ns

- Channel count/type: 1, low-side

- Gate compatibility: N-Channel and P-Channel MOSFET gates

Lifecycle

Status: Active and in ongoing production by Microchip Technology (based on latest public information). Not near end-of-life as of our most recent update.

Direct equivalents and close alternatives:

- Microchip TC4420 series (single, 6 A, non-inverting) — functional alternative; check pinout and specs

- Microchip MIC4420 in other package options (e.g., different tape, tube, or package variants) — same function; package differs

- Microchip MIC4421 (single, 6 A, inverting) — use if an inverting input is acceptable

- Microchip TC4429 (single, 6 A, inverting) — use if an inverting input is acceptable

- Texas Instruments UCC27511A/UCC27512A (single-channel, high-speed gate drivers; different peak currents/pinouts) — verify drive strength and pinout

- ON Semiconductor NCP81074A or NCP81071 (single-channel MOSFET drivers; different current and pins) — verify specs and layout impact

Important note: Always verify pinout, logic polarity, supply range, drive current, and timing before substituting. If you need a drop-in, pin-compatible alternative or guidance on second sources, please contact our sales team via the Y-IC website for personalized support.

Key Application Areas

Primary-side or secondary-side low-side MOSFET drive in DC-DC converters and POL regulators

Synchronous rectification (low-side device)

Motor control and solenoid/valve drivers using external MOSFETs

Class-D audio power stages (low-side drive segments)

Inductive load switching and fast power stage prototyping

General-purpose MOSFET gate drive from microcontrollers, FPGAs, or logic

Datasheet

The most authoritative and up-to-date datasheet for MIC4420YMM-TR is available on our Y-IC product page. We strongly recommend downloading it now to confirm pinout, absolute maximum ratings, timing, and thermal data.

Request for Quotation Now

Get a Quote on Y-IC now for MIC4420YMM-TR. Fast response, competitive pricing, and verified authentic stock.

Learn More by visiting our product page for live inventory, datasheets, and cross-reference help.

Limited Time Offer: Stock moves fast. Reserve your 2620-unit requirement today or request scheduled deliveries.
