Microchip Technology MIC2954-03WS-TR

MIC2954-03WS-TR Linear Regulator Product Summary

The MIC2954-03WS-TR from Microchip Technology is a robust, positive fixed linear voltage regulator providing a highly regulated 5V output at currents up to 250mA. Offered in a space-saving SOT-223-3 surface-mount package, the MIC2954-03WS-TR is engineered for low dropout voltage, minimal quiescent current, and thorough protection against electrical transients and abnormal conditions. Its design is well-suited for use in modern battery-powered systems—especially where efficiency, reliability, and compact footprint are key selection metrics.

Main Features and Advantages of MIC2954-03WS-TR

The MIC2954-03WS-TR stands out for its low dropout voltage, typically only 40mV under light load and up to 375mV at the full 250mA output. This ensures reliable 5V regulation even when the supply voltage is only slightly higher than the output, making the device ideal for applications with strict battery voltage margins. The device also features an exceptionally low quiescent current (typically 120μA), extending battery operating time in portable applications.

To safeguard downstream circuits and maximize system durability, the MIC2954-03WS-TR offers comprehensive protection mechanisms:

Fold-back current limiting, protecting against excessive output current, and safely handling short-circuit scenarios.

Reverse battery protection, with the input enduring voltages to -20V.

Load dump resilience for automotive applications, tolerating positive input transients up to +60V.

Thermal shutdown to prevent device failure under overheating.

With industry-leading line and load regulation, a low temperature coefficient, and tight output voltage accuracy (±0.5% or ±1% maximum over -40°C to +125°C), the MIC2954-03WS-TR delivers performance consistency across diverse operating conditions.

Typical Uses for MIC2954-03WS-TR

The MIC2954-03WS-TR’s performance characteristics make it a strong candidate for a variety of application scenarios:

Battery-powered equipment (e.g., handheld instruments, sensors) requiring low dropout, low standby current, and strong load/line regulation.

Cellular phones, laptops, and palmtop computers, where battery longevity and board area are at a premium.

PCMCIA regulation or switching (for VCC and VPP rails) in computer peripherals.

Automotive electronics that must withstand harsh under-hood environments and transient events.

SMPS post-regulation, DC-DC converter modules, and voltage reference or supply rails in precision analog circuits.

Maximum Ratings and Recommended Conditions for MIC2954-03WS-TR

Reliability hinges on observing the limits imposed by the device's design. The MIC2954-03WS-TR can withstand continuous supply voltages from 2.0V to 30V (for normal operation), with absolute maximum ratings extending from -20V (reverse battery scenarios) to +60V (for positive input transients of limited duration and duty cycle). The device's junction temperature range covers -40°C to +125°C, ensuring suitability for industrial and automotive environments.

To maintain safe operation:

The supply voltage should remain within the recommended operating range.

Sufficient thermal management must be provided, particularly when the device is close to its power dissipation limits.

Lead and storage conditions must not breach specified maxima to avoid latent damage or reliability deterioration.

Electrical Specifications of MIC2954-03WS-TR

For applications demanding precise voltage delivery and efficiency, the MIC2954-03WS-TR delivers:

Fixed 5V output at up to 250mA, with high accuracy across temperature and load variations.

Dropout voltage (input-to-output differential at the threshold of regulation) of 40mV at light loads and typical 375mV under full load, minimizing heat generation and wasted energy.

Quiescent current as low as 120μA typical, rising only slightly in dropout, which is critical for long battery life.

Tight line and load regulation, maintaining output voltage within stringent limits even under varying input voltage and load currents.

Robust current fold-back limiting, reducing stress during overload or short-circuit events.

Design Guidelines and External Capacitor Selection for MIC2954-03WS-TR

Proper decoupling and stabilization are central to extracting optimal performance from the MIC2954-03WS-TR. A minimum of 2.2μF output capacitance (tantalum, solid electrolytic, or appropriate aluminum electrolytic) is required for stability. At lower output currents, this requirement may be relaxed, but output voltage accuracy is best assured by adhering to recommended values.

Critical guidelines include:

For input wires exceeding 10 inches or battery-input applications, a 0.1μF capacitor from input to ground is essential.

For temperatures below -25°C, solid tantalums are recommended, as some aluminum electrolytics may lose functionality due to freezing.

For output voltages below 5V (if using programmable variants), larger output capacitors are required.

Carefully select output capacitors with <5Ω ESR and >500kHz resonant frequency to avoid instability.

For reference applications where noise is a concern, output noise can be substantially reduced by increasing output capacitance or by adding a bypass capacitor across the resistor divider (in adjustable versions).

Thermal Considerations and PCB Layout Recommendations for MIC2954-03WS-TR

Efficient thermal design is vital, particularly in surface-mount deployments. The SOT-223 package used for MIC2954-03WS-TR exhibits a junction-to-case thermal resistance of 15°C/W (and higher for junction-to-ambient unless augmented with ground planes and wide traces).

Recommendations:

Deploy wide copper traces and maximize PCB ground plane area beneath the regulator for improved heat dissipation.

For applications with higher ambient temperatures or increased power dissipation, verify through calculation (or simulation) that the junction temperature remains below 125°C.

In “worst-case” mounting (minimal copper, single-layer FR4), limit power dissipation to around 440mW at 55°C ambient.

Available Packaging Types and Footprint Details for MIC2954-03WS-TR

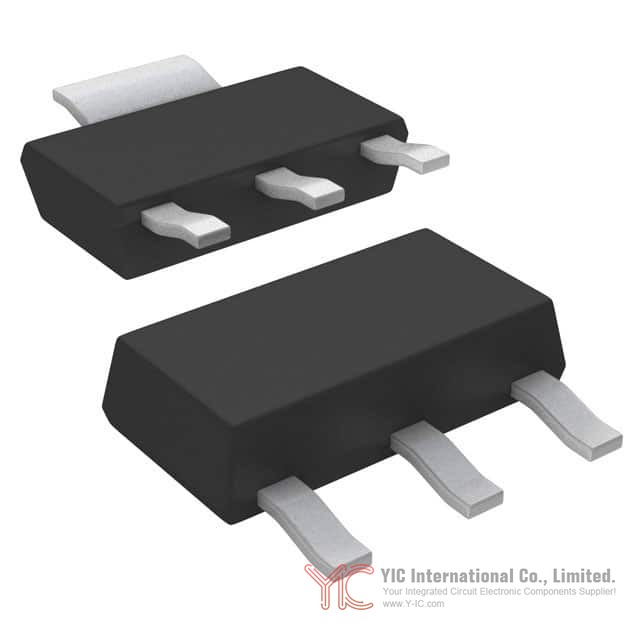

The MIC2954-03WS-TR is supplied in a compact SOT-223-3 package, offering ease of integration in dense layouts. The regulator family also supports TO-220, TO-92, and SOIC-8 options for broader use, each with unique thermal and size considerations. For space-constrained, high-efficiency designs, the SOT-223 is often chosen due to its balance of thermal performance and footprint.

Alternative or Substitute Devices Compatible with MIC2954-03WS-TR

In scenarios where the MIC2954-03WS-TR is unavailable or where alternative supplier qualification is required, engineers might evaluate these equivalents or replacements:

LD1117-5.0 (STMicroelectronics, ON Semiconductor): A fixed 5V, 800mA LDO regulator with similar pinout and form factor, though with higher quiescent current.

AMS2954-5.0 (Advanced Monolithic Systems): Offers equivalent 5V regulation and drop-in compatibility in various packages.

TL750M05 (Texas Instruments): A 5V, 500mA low-dropout linear regulator—note different pinout and operating characteristics.

AZ2954-5.0 (Diodes Incorporated): Functionally compatible, with similar protection and LDO characteristics.

Verify the precise electrical, pinout, and protection attributes match application requirements before substituting, particularly in automotive or battery-critical systems.

Conclusion

: Assessing the MIC2954-03WS-TR in Power Supply Design

The MIC2954-03WS-TR from Microchip Technology presents a strong proposition for engineers seeking a robust, low-dropout, highly accurate 5V linear regulator in portable, automotive, and industrial systems. With its blend of low standby current, tight regulation, comprehensive protection features, and compact SOT-223 packaging, the MIC2954-03WS-TR meets the needs of modern circuit designs demanding efficiency, reliability, and board real estate optimization. By observing the design and application guidelines detailed herein, engineers and procurement professionals can confidently determine the MIC2954-03WS-TR’s suitability for their voltage regulation challenges.
