Microchip Technology MIC2590B-2BTQ

Summary of the MIC2590B-2BTQ Hot Plug Controller from Microchip Technology

The MIC2590B-2BTQ, manufactured by Microchip Technology, is a sophisticated dual-slot hot plug controller designed specifically for Peripheral Component Interconnect (PCI) applications. Housed in a 48-TQFP package, the MIC2590B-2BTQ supports complete power management and control functions required for PCI 2.2-compliant systems, including compatibility with Intelligent Platform Management Interface (IPMI) standards. By enabling robust hot swap capabilities and intelligent monitoring, this device addresses reliability, fault isolation, and advanced power management challenges in server, networking, and high-availability computing platforms.

Major Attributes and Functional Capabilities of the MIC2590B-2BTQ Hot Plug Controller

The MIC2590B-2BTQ hot plug controller offers a wide range of features critical for multi-channel PCI hot-plug applications:

Dual independent slot support with full power management for each slot

Comprehensive supply compatibility: +5V, +3.3V, +12V, -12V, and +3.3V_AUX for each slot, per PCI 2.2 specification

Programmable inrush current limiting for smooth card insertion

Active current regulation via constant-current techniques

Electronic circuit breaker function with dual-level fault detection, enabling fast shutdown on overcurrent without nuisance tripping

Integrated thermal isolation between slot A and slot B, enhancing fault isolation

SMBus (System Management Bus) interface for remote configuration, real-time status, and control

Real-time supply voltage and current monitoring accessible for IPMI sensor records

Fault reporting and power status monitoring, with interrupt signaling capabilities

Electrical Characteristics and Performance Specifications of the MIC2590B-2BTQ Hot Plug Controller

Engineers must consider the following absolute maximum and recommended operating conditions for the MIC2590B-2BTQ:

Supply voltages:

+12V_IN: 11.65V to 12.6V (abs max +14V)

-12V_IN: -11V to -13.2V (abs max -14V)

+5V_IN: 4.85V to 5.25V (abs max +7V)

+3V_IN: 3.1V to 3.6V (abs max +7V)

V_STBY: 3.15V to 3.6V (abs max +7V)

Ambient temperature range: 0°C to +70°C

Junction temperature: maximum 125°C

ESD rating: 2kV (human body model)

Thermal resistance (TQFP): 56.5°C/W

Logic input/output voltage: -0.5V min/+5.5V max

Adhering strictly to these parameters is critical to guarantee optimal operation and device reliability.

Common Use Cases for the MIC2590B-2BTQ Hot Plug Controller

The MIC2590B-2BTQ is ideally suited for use in PCI hot-plug power distribution environments where continuous system uptime, modular scalability, and dynamic hardware insertion/removal are required. Key deployment cases include blade server platforms, network routers/switches, and storage systems where the ability to add or remove PCI modules without powering down the host is essential for operational flexibility and serviceability. The controller supports real-time voltage and current measurement, making it well-integrated with IPMI-enabled systems for advanced platform management and environmental monitoring.

Operational Behavior of the MIC2590B-2BTQ Hot Plug Controller within PCI Hot-Plug Systems

During card insertion into live systems, the MIC2590B-2BTQ controls power sequencing and actively limits inrush currents—avoiding supply voltage droops that may lead to data corruption or system lock-up. The power-on reset logic ensures correct initialization and guarantees that supply rails are applied in the correct order. The device performs controlled ramp-up of output FET gates via programmable current sources, safeguarding both energy delivery and connected hardware. Upon shutdown or card removal, output paths are automatically discharged.

Standby mode is supported, maintaining operation of 3.3V_AUX rails independently of main supplies, fulfilling PCI 2.2 auxiliary requirements. Fault conditions—such as overcurrent, thermal overload, or undervoltage—trigger immediate circuit breaker action and isolate affected outputs, preventing propagation of faults across the system.

System Integration and Communication Methods for the MIC2590B-2BTQ Hot Plug Controller

The MIC2590B-2BTQ provides both a dedicated hot plug interface (HPI: ON[A/B], AUXEN[A/B], /FAULT[A/B]) and an SMBus-compliant System Management Interface (SMI: SDA, SCL, /INT), supporting flexible control topology. Power management operations can be handled locally via HPI signals or remotely via SMBus registers, but not simultaneously for any given slot. The SMBus function enables host-level monitoring and control, including output voltage, current, fault status, and interrupt-driven fault reporting. Up to eight MIC2590B controllers can coexist on a single SMBus using configurable address bits (A2, A1, A0).

Overcurrent Protection and Monitoring Solutions in the MIC2590B-2BTQ Hot Plug Controller

Advanced protection features ensure system integrity:

Electronic circuit breaker with programmable fault timer via external capacitors

Fast-trip and slow-trip thresholds for immediate isolation of short circuits and persistent overloads

Separate breaker logic for auxiliary outputs, with current regulation into fault conditions

Dual thermal shutdown modes providing both per-slot and overall device protection, with action thresholds of 140°C (slot-specific) and 160°C (global)

Over-voltage, under-voltage, and over-temperature monitoring with register-level status flags

A 20-channel, 8-bit ADC monitors per-rail voltage and current under SMBus control—critical for system diagnostics and dynamic resource management

Interrupt (/INT) output asserts under fault, enabling both polling and event-driven system architectures

Guidelines for Choosing Suitable Components for the MIC2590B-2BTQ Hot Plug Controller

Effective deployment of the MIC2590B-2BTQ hot plug controller requires thoughtful engineering of supporting hardware:

Sense resistor selection: Calculated based on trip voltage, load current, and tolerances, with guidance provided for both minimum and maximum current scenarios. Resistors with suitable power ratings (e.g., 1.0W types) are recommended for robustness.

Kelvin sensing: Low-value sense resistors demand precision voltage measurement; dedicated sensing traces are standard practice to exclude IR drops from power paths.

MOSFET selection: Choose power FETs fulfilling voltage, current, and thermal criteria—30V drain-source and 20V gate-source are baseline recommendations. On-resistance (R_DS(on)) and transient/steady-state thermal impedance should be evaluated during selection. The Vishay Si4430DY is cited as a practical example, with detailed calculations provided for thermal management.

Gate resistor and capacitor guidelines: MOSFET gates should use damping resistors (typically 47Ω) in series with gate capacitors (e.g., 10nF) for safe ramping and oscillation avoidance.

Power supply decoupling: Use composite capacitor networks and ferrite beads to suppress high-frequency noise, with explicit guidelines for critical rails such as -12V and +12V.

-12V input clamp diode: Schottky diodes (e.g., ON Semiconductor MBRS140T3) are suggested for transient protection between -12V input and ground, especially where board-level inductive or switching noise could cause over-voltages.

Physical Package and Mechanical Specifications of the MIC2590B-2BTQ Hot Plug Controller

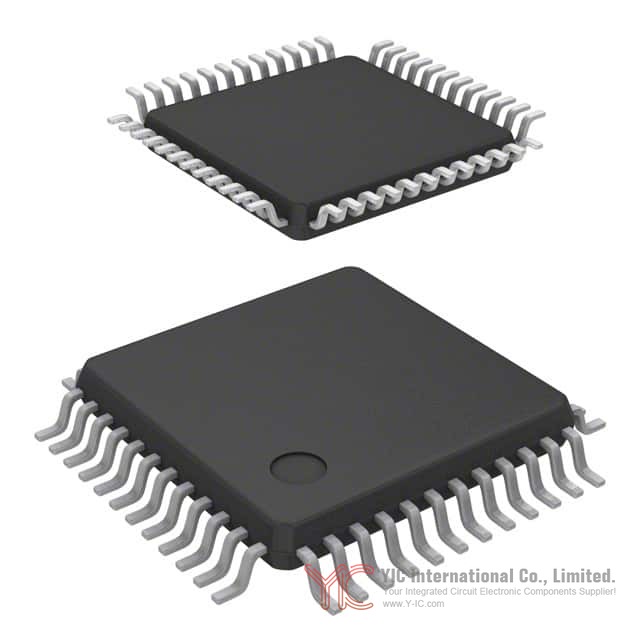

The MIC2590B-2BTQ is delivered in a space-efficient 48-pin TQFP (7x7mm) package. Thermal and dimensional details are provided to facilitate integration in dense PCI board designs. Package tolerances, lead format, and mold specifications ensure compatibility with automated assembly processes.

Possible Alternatives and Substitute Models for the MIC2590B-2BTQ Hot Plug Controller

For engineers considering alternatives to the MIC2590B-2BTQ, several ICs and solutions may serve as equivalents or replacements in PCI hot-plug controller roles. Viable candidates should match the following criteria:

Dual-slot (or multi-slot) PCI 2.2 hot-plug compliant power controllers

Integrated SMBus or I2C management interface

Programmable inrush current limiting, fault detection, and thermal shutdown

Support for all PCI supply rails including 3.3V_AUX

Circuit breaker and supervisory functions

Examples from major vendors include Texas Instruments' TPS2365 series and Maxim Integrated's MAX5953/53A. Selection should be based on slot/channel count, interface protocol, voltage/current ratings, and fault response requirements to ensure full specification compliance and drop-in compatibility.

Conclusion

: Summary and integration considerations for the MIC2590B-2BTQ hot plug controller

The MIC2590B-2BTQ hot plug controller from Microchip Technology delivers comprehensive dual-slot PCI hot-plug functionality with robust protection, flexible management, and advanced monitoring features essential for today’s high-availability systems. By following sound engineering practices in sense resistor, MOSFET, and passive component selection, and by leveraging its SMBus interface for intelligent diagnostics and control, engineers can achieve fault-resilient, serviceable PCI platform architectures. The 48-TQFP package and fully specified operating conditions further facilitate seamless integration. When specifying PCI hot plug solutions for new or upgrade projects, the MIC2590B-2BTQ represents a credible, feature-rich choice, and its architecture serves as a reference benchmark for equivalent product evaluation.
