Microchip Technology M2S010TS-FG484I

Mfr. Part

M2S010TS-FG484I

Manufacturer

Micrel / Microchip Technology

Y-IC is a quality distributor for Microchip brands. We deliver genuine products, fast service, and dependable support so you get the best results on every project.

Detailed Description

SmartFusion2 SoC FPGA with ARM Cortex-M3 running up to 166 MHz. 10K FPGA logic modules, 233 user I/O, embedded Flash 256 KB and SRAM 64 KB. High-speed interfaces include DDR, PCIe, and SERDES. Rich connectivity options include CAN, Ethernet, I2C, SPI, UART/USART, and USB. Industrial-grade operation with junction temperature from -40 to +100 C. Package is 484-ball FPBGA 23 x 23 mm. RoHS non-compliant variant. Base product number M2S010. Supplied in tray. Series SmartFusion2. Architecture MCU plus FPGA.

Key Features

ARM Cortex-M3 core up to 166 MHz

FPGA fabric with about 10K logic modules

233 user I/O in 484-ball BGA package

Embedded Flash 256 KB and SRAM 64 KB

High-speed interfaces DDR, PCIe, SERDES

Connectivity CAN, Ethernet, I2C, SPI, UART or USART, USB

SmartFusion2 family features deterministic, flash-based fabric

Industrial junction temperature range -40 to +100 C

Supplier device package 484-FPBGA 23 x 23 mm

SmartFusion2 series for integrated control and interface tasks

Key Advantages

One chip solution combining microcontroller and FPGA fabric cuts BOM and board space

Deterministic performance with tightly coupled MCU and programmable logic

Rich I/O and high-speed interfaces simplify system integration and bridging

Industrial temperature capability for harsh environments

Proven Microchip SmartFusion2 platform with long-term availability

Designed for robust operation and stable power behavior

Strong ecosystem and tools reduce development time

Packaging

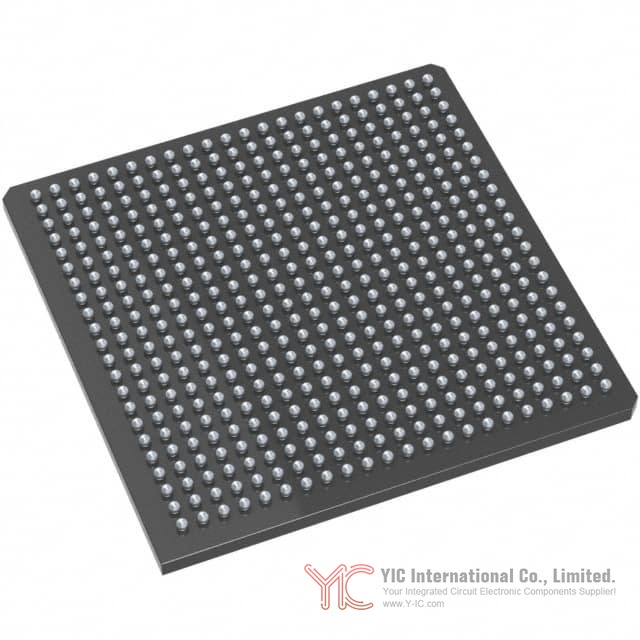

Type 484-FPBGA fine-pitch ball grid array

Material molded plastic over silicon die with BGA substrate

Size 23 mm x 23 mm body outline

Pin configuration 484 balls total with 233 user I/O plus power, ground, transceiver, DDR, and dedicated pins organized in multiple banks

Thermal characteristics junction temperature rating -40 to +100 C typical for industrial grade; BGA form helps heat spread through PCB copper; use proper copper planes and airflow for best results

Electrical properties MCU core speed 166 MHz; FPGA fabric around 10K logic modules; embedded Flash 256 KB and SRAM 64 KB; multi-voltage I/O banks and core rails per SmartFusion2 guidelines; consult datasheet for exact voltages, current draw, and decoupling needs

Package case 484-FPBGA 23 x 23 mm

Supplier device package 484-FPBGA 23 x 23 mm

Shipping package tray for safe handling and assembly

RoHS status non-compliant

Lifecycle

Current status active production by Microchip based on publicly available family information; not nearing discontinuation

Pin-compatible and density options within SmartFusion2 family

- M2S005 family lower density option

- M2S025 family mid density option

- M2S050 family higher density option

- Availability of FG484 package varies by option and transceiver features; check exact ordering codes

Alternative models by function and capability

- Microchip IGLOO2 FPGA-only family when MCU is not needed

- Microchip PolarFire family for lower power mid-range FPGA needs without integrated MCU

- Microchip PolarFire SoC with integrated RISC-V CPU for higher performance SoC applications

- Xilinx Zynq-7000 SoC and Intel Cyclone V SoC as cross-vendor alternatives for ARM-based SoC FPGA solutions

Note exact drop-in equivalence depends on package, I/O banks, and transceiver presence; for pin compatibility and migration paths contact our sales team via the Y-IC website for detailed guidance

Key Application Areas

Industrial control and automation PLC, motor control, servo drives

Industrial Ethernet and fieldbus gateways bridging and protocol conversion

Automotive subsystems CAN-based controllers and gateways

Aerospace and defense rugged embedded control where RoHS exemptions may apply

Medical and laboratory equipment reliable control and interface

Smart grid and energy systems metering, protection relays, communication bridges

Secure communications and embedded security functions

PCIe endpoints and bridges, custom accelerators, and offload engines

Embedded vision, sensor fusion, and real-time processing
