Microchip Technology M2S010-TQ144

Mfr. Part

M2S010-TQ144

Manufacturer

Micrel / Microchip Technology. Y-IC is a quality distributor of Microchip brands, and we will provide you with the best products and professional services.

Detailed Description

SmartFusion2 SoC FPGA with ARM Cortex-M3 core. 166 MHz MCU subsystem, integrated flash-based FPGA (about 10K logic modules), 256 KB on-chip Flash, 64 KB SRAM, 84 user I/O, rich peripherals (CAN, Ethernet, I2C, SPI, UART/USART, USB). 144-pin TQFP/LQFP package, 20 x 20 mm body. Commercial temperature, 0°C to 85°C TJ. RoHS non-compliant. Category: Integrated Circuits (ICs). Type: Embedded – System On Chip (SoC). Architecture: MCU + FPGA. Series: SmartFusion2. In-stock quantity: 2693 units. Supplier package: 144-TQFP (20x20). Factory pack: Tray.

Key Features

ARM Cortex-M3 core at up to 166 MHz for fast control and real-time tasks

Flash-based FPGA fabric, about 10K logic modules for custom hardware acceleration

256 KB embedded Flash and 64 KB SRAM for code, data, and buffers

84 programmable I/O pins for flexible board interfacing

Connectivity on-chip: CANbus, Ethernet MAC, I2C, SPI, UART/USART, USB

SmartFusion2 platform benefits: secure, reliable, non-volatile FPGA technology

144-pin TQFP/LQFP package, 20 x 20 mm, easy for cost-effective PCB assembly

Commercial temperature range: 0°C to 85°C TJ

Integrated MCU + FPGA reduces external components and simplifies design

Key Advantages

One chip replaces separate MCU and FPGA, cutting BOM, board space, and power

Flash-based FPGA starts instantly and is immune to SRAM bit upsets; no external config memory needed

Strong security and reliability features typical of SmartFusion2 (secure boot, cryptography support, tamper resistance) help protect IP and data

Rich peripheral set reduces need for add-on controllers

Flexible I/O and programmable logic let you adapt quickly to changing requirements

Easy to prototype and manufacture thanks to the 144-pin TQFP/LQFP package

Packaging

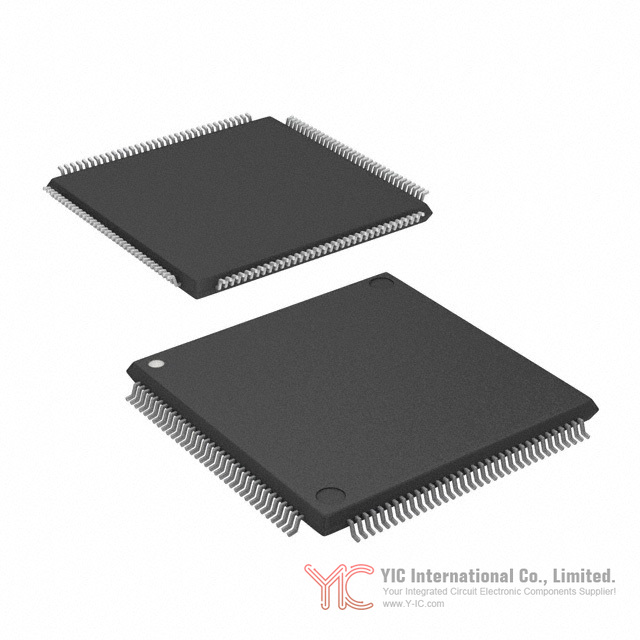

Type: 144-pin TQFP / LQFP (vendor references list 144-TQFP (20x20) and 144-LQFP; these are equivalent low-profile quad flat packages)

Material: Epoxy mold compound with copper leadframe (standard for TQFP/LQFP)

Size: 20 x 20 mm body; low-profile thickness (typical for LQFP/TQFP)

Pin configuration: 144 leads, fine-pitch perimeter pins; typical pin pitch for 144-pin TQFP/LQFP is 0.5 mm; please confirm exact pitch and pinout in the datasheet

Thermal characteristics: Operating junction temperature 0°C to 85°C; actual thermal performance depends on PCB copper, airflow, and power dissipation—follow datasheet guidelines

Electrical properties (summary): Core clock up to 166 MHz; 84 I/O; embedded Flash 256 KB; SRAM 64 KB; FPGA fabric ~10K logic modules; for exact supply rails and bank voltages, refer to the datasheet

Factory packaging: Tray for secure handling and assembly

Lifecycle

Current status: Active and widely used within the SmartFusion2 family; not near discontinuation based on typical availability

Alternatives and equivalents:

- Same family, different densities (check package options and pin compatibility): M2S005 (lower density), M2S025, M2S050, M2S060, M2S090, M2S150

- Potential pin-compatible variants in 144-pin package (verify pinout and power rails): M2S005-TQ144, M2S025-TQ144

- If you need RoHS-compliant variants or different temperature grades, look at related SmartFusion2 ordering codes with compliant finishes and extended temp options

If you need a fully vetted, pin-to-pin compatible substitute or a specific compliant version, please contact our sales team via the Y-IC website for detailed guidance

Key Application Areas

Industrial control, motor drives, and PLC/HMI platforms

IoT gateways and edge computing nodes with hardware acceleration

Automotive and transportation (CAN/Ethernet bridging, domain controllers)

Networking and security devices (firewalls, secure gateways, packet processing)

Medical equipment and instrumentation requiring deterministic control

Smart grid, energy, and building automation systems

Aerospace and defense projects needing secure, reliable programmable logic

Datasheet

Y-IC hosts the most authoritative datasheet and technical resources for M2S010-TQ144. We recommend downloading the datasheet from this product page to get exact pinouts, supply rails, timing, and design guidelines.
