Microchip Technology ATMEGA169PA-AN

Summary of ATMEGA169PA-AN Microcontroller

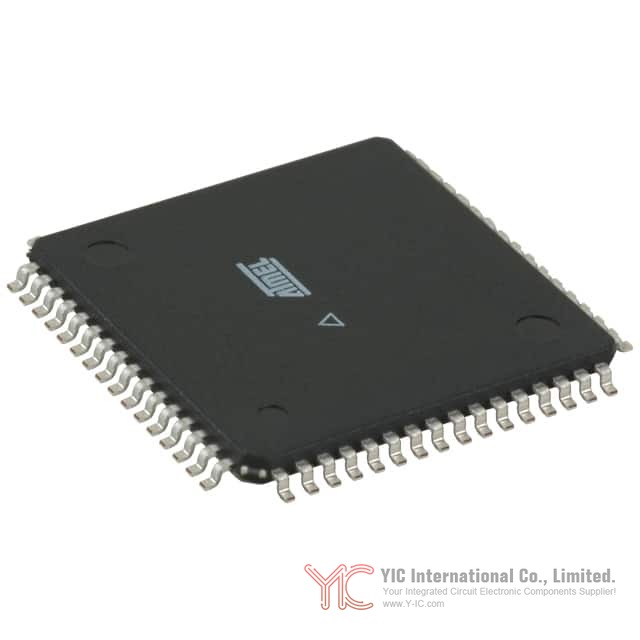

The ATMEGA169PA-AN, part of Microchip Technology’s AVR® ATmega microcontroller family, is an 8-bit CMOS MCU designed with a focus on embedded control applications requiring robust performance, low power consumption, and versatile interface options. The device, housed in a 64-TQFP package, integrates 16KB of in-system programmable flash memory, making it suitable for a wide range of applications from consumer electronics to industrial automation.

ATMEGA169PA-AN Core Design and Processing Performance

ATMEGA169PA-AN is built on the enhanced RISC architecture characteristic of the AVR family, featuring 130 powerful instructions that mostly execute in a single clock cycle. It is equipped with 32 general purpose working registers tightly coupled to the Arithmetic Logic Unit (ALU), pushing performance up to 16MIPS at 16MHz operation. This core architecture enables efficient code execution and fast data throughput in real-time applications. The on-chip 2-cycle multiplier further accelerates complex arithmetic computations, which is particularly useful in signal processing or control algorithms.

Memory Specifications and Durability in ATMEGA169PA-AN

Engineers evaluating the ATMEGA169PA-AN benefit from a comprehensive memory scheme. The device comprises 16KB of flash memory with read-while-write capabilities, 512 bytes of EEPROM, and 1KB of SRAM. This dual-mode flash supports in-system self-programming, via either an on-chip boot program or external programmer, facilitating secure firmware updates and system flexibility. Notably, the flash supports up to 10,000 write/erase cycles, while the EEPROM endures up to 100,000 cycles, with data retention specified at 20 years at 85°C and 100 years at 25°C. This durability meets the demands of long-life, mission-critical systems.

ATMEGA169PA-AN Peripheral Capabilities and Interface Options

ATMEGA169PA-AN is rich in integrated peripherals, enabling a substantial degree of functionality without additional external devices. Key features include:

Multiple timer/counters: Two 8-bit units with independent prescalers and an advanced 16-bit timer/counter with capture and compare modes.

Real Time Counter (RTC) supported by a separate oscillator

Versatile serial communication: Programmable Serial USART and SPI master/slave interface

An 8-channel, 10-bit ADC provides precision analog input capabilities

Programmable Watchdog Timer for system safety

Four Pulse-Width Modulation (PWM) channels

On-chip analog comparator for signal threshold detection

LCD controller: 4×25 segment driver enable direct interface to multiplexed LCDs for user interfaces

Additionally, boundary scan and in-circuit debugging/programming are supported via the IEEE 1149.1 compliant JTAG interface. For capacitive touch applications, ATMEGA169PA-AN supports the Atmel QTouch library, offering up to 64 touch sense channels and acquisition options for advanced human interface designs.

Power Consumption and Operating Modes of ATMEGA169PA-AN

PicoPower® technology endows the ATMEGA169PA-AN with exceptional energy-saving characteristics, crucial for battery-operated or low-standby-power products. The device’s active mode can draw as little as 215μA at 1MHz, 1.8V, while deep sleep modes (Power-down and Power-save) can reduce consumption to sub-μA levels (down to 0.1μA at 1.8V). Five distinct sleep modes—Idle, ADC Noise Reduction, Power-save, Power-down, and Standby—allow designers fine-grained control over power consumption according to system activity. Wake-up on pin change and programmable brown-out detection ensure reliable operation even in power-sensitive scenarios.

ATMEGA169PA-AN Input/Output Arrangements and Packaging Selections

With up to 54 general purpose I/O lines, the ATMEGA169PA-AN provides extensive connectivity for sensors, actuators, and user interfaces. Ports A through G support symmetrical drive characteristics and internal pull-ups for flexible signal management; Port F doubles as analog input for the integrated ADC. The microcontroller is available in multiple package formats, including 64-lead TQFP, QFN/MLF, and DRQFN, facilitating a range of PCB design strategies from compact consumer designs to robust industrial modules.

Environmental Conditions and Reliability of ATMEGA169PA-AN

ATMEGA169PA-AN is qualified for industrial temperature operations from -40°C to 85°C, ensuring suitability in demanding operating environments. The packaging is fully RoHS compliant and halide free, aligning with global environmental regulations. Reliability testing confirms that the device’s data retention and operational stability meet criteria for extended field deployment, with failure rates projected far below 1 PPM over 20 years at elevated temperatures.

ATMEGA169PA-AN Development Tools and Integration Support

System developers will find extensive support for ATMEGA169PA-AN, including C compilers, macro assemblers, simulators/debuggers, and evaluation kits. Comprehensive application notes and interface libraries—such as QTouch for capacitive sensing—accelerate integration of advanced features into end products. The device’s flexible in-system programming options and full boundary scan support simplify both firmware updating and hardware test during manufacturing and maintenance.

ATMEGA169PA-AN Known Limitations and Errata

Microchip Technology maintains an updated errata section for the ATMEGA169PA-AN. At present, devices through revision G report no known errata—a testament to maturity and reliability. For related devices in the ATmega169/329/649 family, errata may impact specific timer behaviors in asynchronous mode or brown-out detection configurations, and robust engineering solutions or firmware workarounds are documented for affected revisions. It is critical for engineering teams to consult current revision notes during design freeze and production ramp-up to ensure optimal functionality and system stability.

Alternative or Substitute Models for ATMEGA169PA-AN

For engineers seeking alternatives based on memory size, interface configuration, or peripheral set, the ATmega family provides several pin- and function-compatible options:

ATMEGA169A: Shares core features, differing mainly in speed grades and minor revisions.

ATMEGA329A/329PA/3290A/3290PA: Expanded flash (up to 32KB), enhanced interface options, and additional segment drivers for LCD applications.

ATMEGA649A/649P/6490A/6490P: Further increased flash capacity (up to 64KB) for advanced application needs.

When selecting between these models, consider requirements for code space, number of I/O lines, LCD driver segments, and operation frequency (some variants support up to 20MHz). Package and pin compatibility ease migration within the series.

Conclusion

: Application suitability and selection considerations for ATMEGA169PA-AN

The ATMEGA169PA-AN delivers a robust set of advanced features for engineers tasked with designing reliable, low-power embedded solutions. Its combination of high-performance RISC architecture, endurance-rated memory, integrated analog/digital peripheral functions, and exceptional power management make it highly suitable for industrial, consumer, and portable electronics. With guaranteed support for capacitive touch interfaces and mature development toolchains, the device facilitates innovation while maintaining reliability and ease of integration. In selecting the ATMEGA169PA-AN or evaluating its equivalents, assess your application’s requirements in flash capacity, I/O count, operating environment, and peripheral diversity to ensure an optimal fit for both current and future design needs.
