Texas Instruments TPS62321YEDT

Introduction to TPS62321YEDT Compact Step-Down Converter

The Texas Instruments TPS62321YEDT is a highly integrated synchronous step-down DC-DC converter designed with space-constrained, battery-powered applications in mind. Offering a fixed 1.5V output voltage and capable of supplying up to 500mA of continuous load current, the TPS62321YEDT achieves high efficiency in compact system designs, thanks to its 3-MHz fixed switching frequency and advanced control architecture. Housed in an ultra-small DSBGA-8 (NanoStar™ chip-scale) package, the TPS62321YEDT enables the smallest possible power solution footprint, making it especially suitable for modern portable devices requiring reliable and efficient power conversion.

Highlighted Functions of TPS62321YEDT

The TPS62321YEDT sets itself apart with several critical features supporting efficiency, accuracy, and application flexibility:

High Efficiency: Up to 93% efficiency at a 3-MHz switching frequency, minimizing heat dissipation even at high load currents.

High Output Current: Supports up to 500mA continuous load current from a supply voltage as low as 2.7V.

Precise Output: Delivers a fixed 1.5V output with -0.5%/+1.3% voltage accuracy across temperature.

Advanced Control Modes: Offers both pulse-width modulation (PWM) and power-save mode (PFM), which automatically switches based on load to balance efficiency and noise.

Fast Transient Response: Ultra-fast load and line transient response enables support for dynamic load environments, such as those found in wireless modules and processors.

Low Quiescent Current: Consumes only 86µA during operation and less than 1µA in shutdown mode for minimal impact on overall system power budget.

Flexible Synchronization: Can synchronize to an external clock for noise-sensitive designs and support multi-phase operation.

Robust Protection: Features short-circuit protection, undervoltage lockout (UVLO), and thermal shutdown for reliable system-level performance.

Form Factor: Available in 8-bump Chip Scale (DSBGA) and QFN packages with component profiles as low as 1mm.

Common Use Cases for TPS62321YEDT

Optimized for portable and space-limited devices, the TPS62321YEDT is ideal for the following application domains:

Smartphones and Cell Phones: Providing core and I/O supply rails for processors, RF circuits, and auxiliary functions in smartphones and similar handhelds.

Wireless Modules: Supplies power to WLAN and Bluetooth™ modules where both dynamic and low-quiescent current are critical.

Micro DC-DC Modules: Suitable for embedded DC-DC modules in multi-rail mobile platforms.

PDAs, Pocket PCs, and Notebooks: Powers low-voltage cores in consumer electronic devices that require fast transient performance for power management.

USB Peripherals and DSL Modems: Ensures stable system operation for portable modems and USB-powered expansion modules.

Digital Cameras: Supplies image processors, memory, and sensor interfaces needing efficient power in tight enclosures.

Technical Specifications and Performance Parameters of TPS62321YEDT

The TPS62321YEDT combines high efficiency, fast transient operation, and robust protection in a minimal footprint:

Input Voltage Range: Operates from 2V to 5.5V, compatible with single-cell Li-Ion or three-cell NiMH/NiCd battery configurations.

Output Voltage: Fixed at 1.5V, covering the requirements of modern low-voltage microprocessors and DSP cores.

Output Current: Maximum continuous current of 500mA.

Efficiency: Up to 93% at full load with 3MHz switching; maintains high efficiency across a wide range of load conditions.

Transient Performance: Fast response, with best-in-class load and line regulation due to voltage-mode control with input feed-forward and minimum on-time of 35ns.

Quiescent Current: 86µA typical, with <1µA in shutdown mode, supporting long battery life in portable products.

Protection Mechanisms: Integrated current limiting for both high-side and low-side MOSFETs, short-circuit protection (output drops below 50% of nominal value), UVLO, and overtemperature shutdown.

Packaging Details and Heat Management for TPS62321YEDT

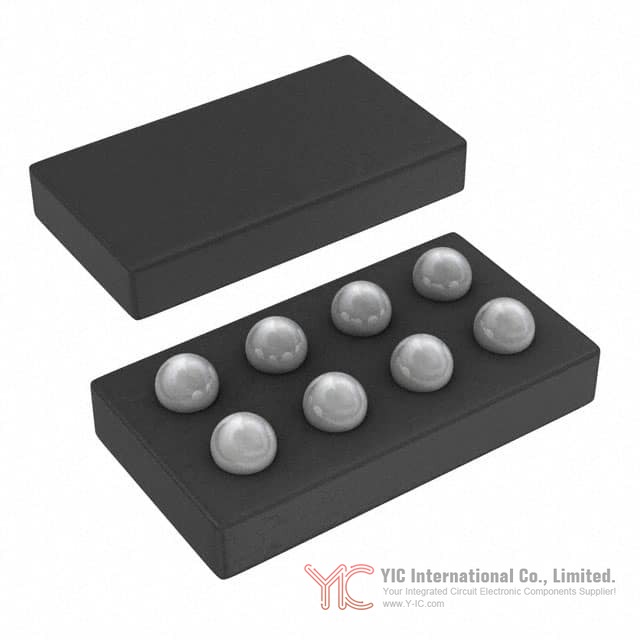

The TPS62321YEDT is available in a highly compact 8-bump DSBGA package (NanoStar™), designed for ultra-thin designs:

Package Dimensions: The DSBGA version features a footprint as small as 1.97mm x 0.97mm, with a profile below 1mm.

Thermal Performance: The maximum junction temperature is 125°C; the DSBGA package's thermal resistance (θJA) is 250°C/W. The minimal mass and exposed pad require careful PCB layout and adequate copper area for heat dissipation—critical for high ambient applications.

Mounting: The chip-scale package requires precise assembly and may not be suitable for all automated placement lines. Layout must ensure effective grounding, minimal parasitics, and proper thermal management, especially when operating near maximum load or in warm environments.

Integration Advice for Designing with TPS62321YEDT

To fully utilize the TPS62321YEDT’s benefits in system designs, consider the following:

Inductor Selection: The device is optimized for a 1µH inductor, though values from 0.7µH to 6.2µH are supported. The inductor should support the required DC current and peak current, with low DCR and minimal core losses at 3MHz switching.

Output Capacitor: A 10µF ceramic capacitor (X7R or X5R dielectric) is recommended for stability and minimizing output noise. Larger output capacitance improves transient response but increases solution size.

Input Capacitor: At least a 2.2µF low-ESR ceramic capacitor is recommended, placed as close as possible to the VIN pin to reduce potential high-frequency noise and voltage spikes.

PCB Layout: Critical for performance—keep switching node traces as short and wide as possible, ensure star-ground connections, and keep feedback and voltage-setting resistors close to the IC away from high-current paths.

Mode Control: The MODE/SYNC pin allows dynamic selection of operating mode—connect to GND for automatic selection between PWM and power-save modes, or pull high for forced PWM operation (useful for noise-sensitive environments).

Output Voltage Adjustment: While TPS62321YEDT is a fixed output version, for applications needing adjustable output, refer to other TPS6232x family members like TPS62320 with resistor-adjustable outputs.

Engineering Tips and Recommended Methods for TPS62321YEDT

Engineers integrating the TPS62321YEDT should pay attention to:

Power Sequencing: Startup is managed by an internal digital soft-start to limit inrush current, enhancing compatibility with high-impedance sources.

Light Load Operation: At low currents, the device automatically enters pulse frequency modulation (PFM) mode, ensuring high efficiency during standby or low-power periods.

Thermal Dissipation: In confined spaces, leverage PCB copper area and thermal vias under the package for optimal heat spreading.

EMI and Noise: For RF-sensitive applications, forced PWM mode can minimize frequency drift and simplify EMI filtering, while automatic mode maintains higher efficiency at low load.

Protection Features: The integrated short-circuit, overtemperature, and input undervoltage locks make the regulator robust for portable and mission-critical designs.

Layout Sensitivity: The high operating frequency demands careful power stage and feedback placement to prevent oscillation and ensure regulation accuracy.

Alternative or Substitute Devices for TPS62321YEDT

The TPS6232x series from Texas Instruments includes multiple options for similar regulation needs or different voltage requirements:

TPS62300 / TPS62320: Adjustable-output versions for applications requiring output from 0.6V to 5.4V.

TPS62301 / TPS62302 / TPS62303 / TPS62304 / TPS62305 / TPS62311 / TPS62313 / TPS62315: Additional fixed output voltage devices in the family (e.g., 1.2V, 1.8V, 2.5V, etc.), enabling seamless adaptation to varying processor supply requirements within one PCB layout.

For designs requiring slightly higher output current or specific sequencing features, members like TPS6232x with integrated active power-down sequencing and different package options are available.

Alternate package types (e.g., QFN-10 PowerPAD™ DRC) can be chosen where PCB assembly or thermal performance is a concern.

When considering replacements, verify the key parameters such as output voltage, maximum current, package compatibility, and pinout for direct substitution.

Conclusion

The TPS62321YEDT offers a compelling solution for engineers seeking maximum power density, efficiency, and transient performance in battery-operated or space-constrained systems. Its combination of advanced control features, robust protection, and ease of layout make it ideal for next-generation portable electronics, handheld wireless modules, and compact DC-DC converter modules. The well-established TPS623xx family ensures a clear migration path or alternate sourcing options, streamlining qualification and system development. When integrated with standard best practices for high-frequency power design, the TPS62321YEDT stands as a reliable, efficient, and flexible choice for modern power rail implementations.
