Texas Instruments TMS320C6748BZCG4

General Introduction TMS320C6748BZCG4

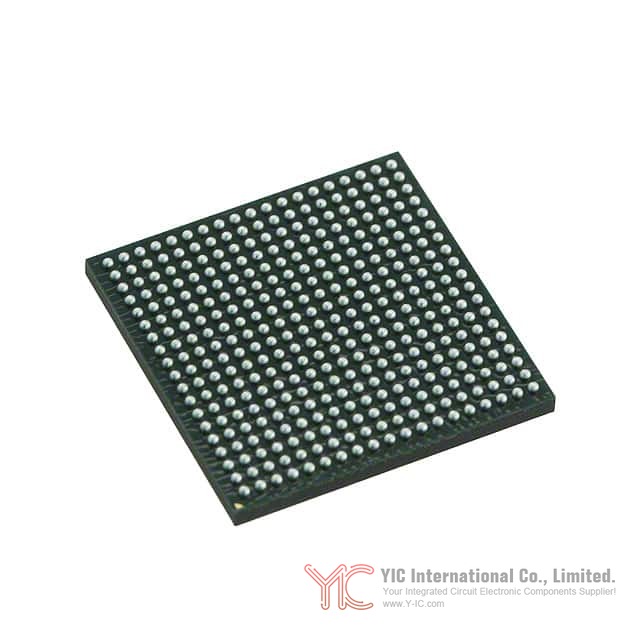

The Texas Instruments TMS320C6748BZCG4 is a high-performance digital signal processor (DSP) designed for both fixed-point and floating-point operations. Built on the C674x core, it offers flexibility and computational power suitable for embedded applications requiring advanced signal processing with low power consumption. Packaged in a 361-ball NFBGA, the TMS320C6748BZCG4 provides a broad array of peripherals and interfaces, making it relevant for systems ranging from currency inspection to biometric identification and machine vision.

Principal Attributes and Performance Specifications of the TMS320C6748BZCG4

Operating up to 456 MHz, the TMS320C6748BZCG4 delivers up to 3648 MIPS and 2746 MFLOPS, supporting both integer and floating-point calculations. The device boasts a superset instruction set architecture (ISA) compatible with C64x+ and C67x+ families, enabling reuse and easy migration for legacy codebases. Its VLIW (Very Long Instruction Word) architecture efficiently parallelizes operations, making it highly suitable for compute-intensive DSP algorithms.

Standout features include a comprehensive two-level cache system (32KB L1P program, 32KB L1D data, and 256KB unified mapped L2 memory) and an EDMA3 controller with 64 DMA channels and 16 Quick DMA (QDMA) channels, deeply optimizing data movement and processing.

DSP Core Design and Processing Capabilities of the TMS320C6748BZCG4

At its core, the C674x DSP CPU contains eight functional units split into arithmetic, logic, load/store, and multiply operations, supported by 64 general-purpose 32-bit registers. The DSP supports mixed-precision floating-point multiplies, reciprocal and square root approximations per cycle, and advanced bit manipulation and field extraction. The instruction set is enhanced for complex multiply, Galois field arithmetic, and bit packing/unpacking, boosting performance in communications and signal-processing tasks.

Additional architectural enhancements include SPLOOP buffering for efficient pipelined loop operations, dual 32-bit register files accessible for parallel processing, and detailed exception handling mechanisms fostering robust and secure DSP code execution.

Memory Architecture and Versatile Connectivity of the TMS320C6748BZCG4

The TMS320C6748BZCG4 supports diverse internal and external memory configurations. DSP-accessible internal memory comprises a dual-level cache (32KB L1P and L1D RAM/cache, 256KB L2 mapped RAM/cache) plus 128KB of shared RAM for multi-core data exchange. External memory interfaces include EMIFA for NAND/NOR flash and asynchronous SRAM, and a dedicated DDR2/mDDR controller supporting both traditional and mobile DRAM devices (up to 256MB).

Flexible RAM/cache partitioning allows system architects to tune memory regions for deterministic real-time performance or increased throughput, with external boot options from NAND, NOR, I2C, SPI, UART, or MMC/SD cards.

Peripheral Interfaces and Built-In Functional Units of the TMS320C6748BZCG4

This DSP offers a rich set of peripherals to minimize external components:

Three 16550-type UARTs, supporting auto-flow control and high-speed modes

Two I²C controllers (master/slave), compliant with 400 kHz fast mode, with interrupt or DMA support

Two SPI interfaces with multi-mode chip-select and flexible master/slave configuration

USB 2.0 OTG (high/full/low speed) and USB 1.1 OHCI with integrated PHY for host/client functions

10/100 Mbps EMAC (Ethernet MAC), supporting both MII and RMII, with integrated MDIO

MMC/SD/SDIO (dual interfaces), supporting secure data I/O and high-capacity SD cards

SATA I/II controller for mass storage devices with NCQ and power management

LCD controller, McASP and McBSP for robust audio and telecom interfacing

Two enhanced high-resolution PWM modules and three 32-bit eCAP modules for advanced motor and control applications

Universal Parallel Port (uPP) for direct high-speed parallel connectivity to FPGAs and data converters

Host-Port Interface (HPI) for high-bandwidth processor-to-processor communications

Programmable Real-Time Unit Subsystem (PRUSS) for industrial and time-sensitive control logic

Integrated interrupt controllers, advanced DMA engines, and a flexible clocking infrastructure ensure high throughput while supporting multi-domain clock and power scaling.

Power Management, Reset Handling, and Signal Quality Aspects of the TMS320C6748BZCG4

Efficient power management is built around two on-chip Power and Sleep Controllers (PSC), enabling granular control of peripheral and memory domains. Dynamic Voltage and Frequency Scaling (DVFS) allows tailored tradeoffs between power consumption and performance.

Device startup is controlled via power-on and warm reset sequences, with robust handling of emulation and JTAG states to support both production and development environments. The device provides internal and external pullup/pulldown options for signal integrity, with recommendations for board-level resistor sizing and IO voltage grouping (1.8V/3.3V LVCMOS), which is critical for mixed-voltage designs.

PCB guidelines are provided for external clock design (support for 12-30 MHz crystals or driven clocks), PLL filtering, SATA differential routing, and DDR2/mDDR layout, including stack-up, keep-out regions, bypassing strategies, signal termination, and placement to guarantee system stability in high-speed designs.

Device Setup and Startup Procedures for the TMS320C6748BZCG4

Boot configuration is programmable through a system configuration module, with boot pin sampling at reset determining the operating mode. Supported boot modes encompass NAND/NOR Flash, HPI, I²C, SPI, UART, and MMC/SD card sources. The boot ROM utilizes secure boot flows for IP protection, including hardware-based root-of-trust, SHA/AES validation, and support for encrypted boot images. This secures both startup and firmware upgrade processes, catering to applications requiring high integrity and confidentiality.

The SYSCFG module covers device identification, pin multiplexing, bus priority, programmable pullups/pulldowns, deep sleep power management, PLL locking, and peripheral clock source selection, contributing to versatile board and system integration.

Package Details, Pin Assignment, and System-Level Layout for the TMS320C6748BZCG4

Available in Pb-free 361-ball BGA packages (0.65mm ZCE or 0.80mm ZWT ball pitch), the TMS320C6748BZCG4 accommodates advanced pin multiplexing across up to 19 register-controlled assignments, ensuring optimal usage of package real estate for multiple peripheral and GPIO functions. Pin-level control allows deterministic routing and minimal signal contention, supporting complex board layouts in high-density embedded designs.

Unused signals and interface lines (‘no connect’ and reserved pins) are specified for correct pullup/pulldown configurations to avoid undefined logic states, and guidelines are included for proper handling of multiplexed functions in board-level implementation.

Application Examples and Common Implementations of the TMS320C6748BZCG4

Engineered for low-power, high-performance embedded systems, the TMS320C6748BZCG4 is particularly well suited for machine vision, biometric identification, and currency inspection solutions. Its mixed-precision DSP core and comprehensive peripheral set meet the demands of industrial control, automotive audio, medical imaging, telecom, and multimedia gateways. Integrated PRU subsystems further enable deterministic real-time control in factory automation and edge devices.

Alternative or Substitute Devices Comparable to the TMS320C6748BZCG4

The TMS320C6748BZCG4 belongs to the C674x DSP family, with code compatibility across the TMS320C6000 platform. For engineering teams seeking alternatives or preparing for supply chain contingencies, consider the following:

Other TMS320C6748 devices in the family with different temperature grades or packages

TMS320C6746 (reduced peripheral set, but similar core) for applications with lighter IO requirements

TMS320C64x+ or TMS320C67x+ DSPs for legacy systems (note ISA compatibility and differences in floating-point support and power profiles)

OMAP-L1x series processors with integrated ARM cores, if additional software flexibility is needed, noting the mixed-architecture implications

When selecting equivalent or replacement models, verify memory configuration, peripheral requirements, operating frequency, and board layout compatibility to ensure seamless migration.

Conclusion

The Texas Instruments TMS320C6748BZCG4 Fixed-/Floating-Point DSP delivers a compelling combination of processing power, memory flexibility, and comprehensive peripheral integration for advanced embedded systems. Its architectural enhancements, secure boot capabilities, and robust signal integrity options make it a preferred choice for modern DSP-centric applications. Armed with detailed device, configuration, and board-level guidelines, engineers and procurement specialists are well-positioned to select the optimal device variant, streamline the integration process, and ensure product longevity in demanding real-world scenarios.
