Texas Instruments TL16C552AFNRG4

Mfr. Part

TL16C552AFNRG4

Manufacturer

Luminary Micro/Texas Instruments

Y-IC is a quality distributor of Texas Instruments/Luminary Micro. We supply original parts and provide the best products, fast delivery, and professional service.

Detailed Description

Dual UART (DUART) with integrated parallel printer port

Category: Integrated Circuits (ICs) | Interface UARTs

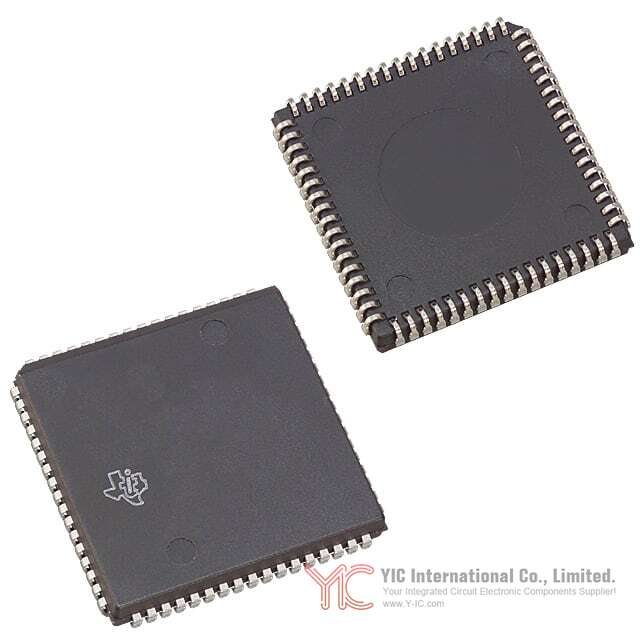

Package/case: 68-PLCC (24.23 x 24.23 mm), J-lead LCC, surface mount

Supplier device package: 68-PLCC (24.23 x 24.23 mm)

Supply voltage: 4.75 V to 5.25 V (5 V nominal)

Max data rate: 1 Mbps

FIFOs: 16-byte TX and RX per channel

Modem control and false start-bit detection for reliable serial communication

RoHS3 compliant, lead-free G4 variant

Base product number: TL16C

Available stock now: 2638 pcs (subject to change)

Key Features

2 independent UART channels (DUART)

Integrated printer port for legacy parallel interfaces

16-byte FIFOs to cut CPU overhead and improve throughput

Programmable baud rate up to 1 Mbps

Modem control support for robust handshaking

False start-bit detection to avoid framing errors

68-PLCC J-lead package for sturdy SMT assembly

RoHS3 compliant, lead-free G4 finish

Factory Tape & Reel option for automated pick-and-place

Key Advantages

Combines two UARTs and a printer port in one device, reducing BOM and board area

Higher serial performance with FIFOs that smooth data bursts

Better link stability via false start detection and modem control

5 V TTL-compatible I/O for legacy and industrial systems

Mature, proven solution with stable supply and broad ecosystem support

Multiple ordering options within the family for manufacturing flexibility

Packaging

Shipment format: Tape & Reel (TR)

Device package: 68-PLCC (Plastic Leaded Chip Carrier), J-lead LCC

Body size: 24.23 mm x 24.23 mm (typical for 68-PLCC)

Mounting type: Surface mount with perimeter J-leads

Pin count and configuration: 68 pins, J-leads on all four sides

Material and compliance: Plastic encapsulated PLCC body, lead-free G4 finish, RoHS3 compliant

Thermal characteristics: PLCC package supports standard convection cooling; for exact thermal resistance (thetaJA/thetaJC) and power dissipation limits, use the datasheet and follow good PCB copper area and airflow practices

Electrical properties (high level): 4.75–5.25 V supply, 1 Mbps max data rate, 16-byte FIFOs, modem control, false start-bit detection

Lifecycle

Status: Active and mature. No public end-of-life notice known at the time of writing. For the latest status, check our website or contact Y-IC sales.

Equivalent or alternative models

- Texas Instruments TL16C552AFNR (same function, 68-PLCC, tape & reel; different ordering suffix)

- Texas Instruments TL16C552AFN (same function, 68-PLCC, tube packaging)

- Texas Instruments TL16C2552 family (dual UART variants; features and pinouts differ—verify compatibility)

- NXP/Philips SCC2692 (dual UART, typically 5 V; functional alternative, not pin-compatible)

- MaxLinear/Exar XR16C2552 (dual UART; functional alternative, voltage/pinout may differ)

- NXP SC16C852 (dual UART, often 3.3 V; functional alternative, not drop-in)

If you need exact drop-in replacements or lifecycle guarantees, please contact our sales team via the Y-IC website for detailed cross-reference and availability support

Key Application Areas

Printers and legacy parallel interface systems

Industrial automation controllers, PLC add-on serial modules

POS terminals and kiosks with multiple serial ports

Modems, routers, and networking gear requiring dual UARTs

Test and measurement instruments with RS-232/RS-485 front-ends

Embedded systems and single-board computers needing robust 5 V UARTs

Transportation and building control systems using serial communications
