IXYS VUO122-16NO7

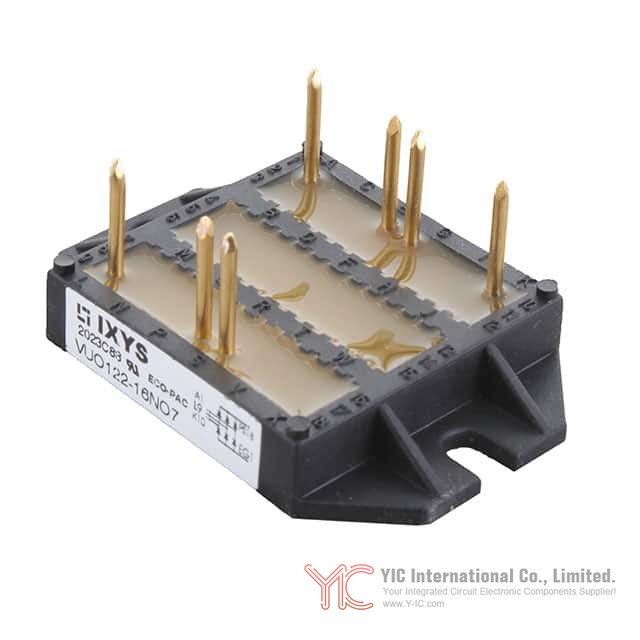

Introduction to the IXYS VUO122-16N07 ECO-PAC2 Three-Phase Bridge Rectifier

The IXYS VUO122-16N07 ECO-PAC2 represents a robust solution for modern power conversion requirements in industrial and commercial three-phase systems. This device, classified as a three-phase bridge rectifier, is designed for standard rectification tasks where high voltage and current handling are paramount. Featuring a voltage rating of 1.6 kV and an average rectified current capacity suited for demanding loads, it accommodates applications such as motor drives, industrial automation controls, and high-power power supplies. Engineered in the ECO-PAC2 package and suitable for chassis mounting, the VUO122-16N07 provides a balance of electrical performance, mechanical stability, and installation convenience.

Main Electrical Specifications of IXYS VUO122-16N07 ECO-PAC2

At the electrical core of the VUO122-16N07 are specifications tailored for rigorous energy conversion requirements. The device offers a maximum peak reverse voltage of 1.6 kV, enabling its use in medium- to high-voltage three-phase circuits. Its average rectified output current stands at a significant level, supporting continuous loads in AC-DC rectification scenarios. The forward voltage drop is rated at 1.13 V at 50 A, which is critical for power loss calculation and thermal management in precision engineering designs. When reverse biased at 1400 V, the rectifier can conduct up to 100 µA, indicating favorable leakage current characteristics that impact long-term reliability. These parameters ensure consistent operation within specified limits and are vital metrics for engineers during system design.

Heat Management and Usage Parameters of IXYS VUO122-16N07 ECO-PAC2

Thermal management is essential in high-power rectification; the VUO122-16N07 is designed to operate effectively across a wide junction temperature range, from -40°C to +150°C. This range supports deployment in environments subject to temperature variation, from cold-storage automation to heat-intensive industrial control panels. Its robust thermal characteristics, combined with the ECO-PAC2 package's enhanced heat dissipation features, make it well-suited for designs where reliability and longevity are critical. Engineers should ensure proper heat sinking and airflow when deploying the VUO122-16N07, optimizing performance and extending service life in mission-critical installations.

Physical Properties and Installation Methods for IXYS VUO122-16N07 ECO-PAC2

The VUO122-16N07’s mechanical design under the ECO-PAC2 standard provides practical integration into a variety of chassis-mounted systems. The package facilitates secure attachment to heat sinks and enclosures, contributing to mechanical stability and optimal heat flow. The standardized ECO-PAC2 form factor streamlines replacement and cross-compatibility within existing systems utilizing similar mounting schemes. For design engineers, ensuring correct torque on mounting hardware and attention to interface materials (such as thermal pads or compounds) can further improve installation reliability and electrical isolation.

Environmental Standards and Certifications of IXYS VUO122-16N07 ECO-PAC2

In addition to its technical strengths, the VUO122-16N07 meets advanced environmental and safety standards demanded by global industries. The rectifier is ROHS3 compliant, aligning with directives regarding hazardous material content and ensuring suitability for use in environmentally regulated jurisdictions. Its REACH status is listed as unaffected, meaning it complies with standards for chemical safety and environmental impact. With a Moisture Sensitivity Level (MSL) of 1 (Unlimited), the device is insensitive to ambient humidity during handling and assembly, further supporting streamlined supply chain management for procurement professionals.

Alternative or Substitute Models for IXYS VUO122-16N07 ECO-PAC2

When considering the IXYS VUO122-16N07 ECO-PAC2, engineering teams may evaluate other models within the IXYS ECO-PAC2 series or comparable three-phase bridge rectifiers by alternative manufacturers. Selection of equivalent or upgraded devices should focus on parameters such as peak reverse voltage, average rectified current, forward voltage drop, package type, and mounting compatibility. Reviewing datasheets for alternative models with similar ratings ensures proper fit for legacy system upgrades, maintenance strategies, or new design implementations seeking cost, availability, or performance optimization.

Conclusion

: Evaluating the IXYS VUO122-16N07 ECO-PAC2 for engineering applications

The IXYS VUO122-16N07 ECO-PAC2 three-phase bridge rectifier stands out as a versatile component for high-voltage AC-DC conversion, combining robust electrical specifications with proven mechanical and environmental reliability. For product selection engineers and procurement professionals, its profile supports demanding industrial and commercial applications where efficiency, ease of integration, and compliance matter. Evaluation of its specifications against project requirements—along with consideration of thermal design, mounting practices, and possible replacement options—enables informed decision-making for optimized power conversion solutions in today’s dynamic electronic systems.
