Honeywell Aerospace HMC5883L-TR

Summary of the Honeywell HMC5883L-TR magnetoresistive sensor

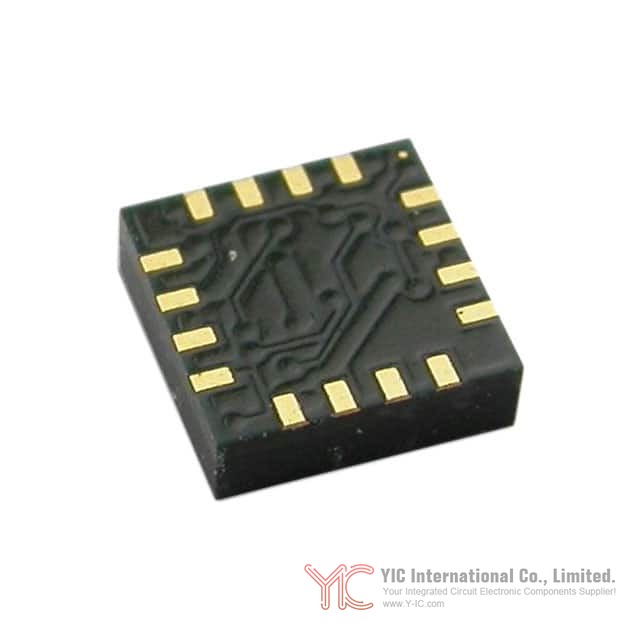

The Honeywell HMC5883L-TR is a precision 3-axis magnetoresistive sensor, engineered to deliver accurate magnetic field measurements in demanding consumer and industrial designs. Leveraging Honeywell’s anisotropic magnetoresistive (AMR) technology, the HMC5883L-TR provides sensitivity and precision within a compact 3.0 x 3.0 x 0.9 mm surface-mount 16-pin leadless chip carrier (LCC), making it ideal for highly integrated OEM solutions. At the heart of the module lies a combination of high-resolution HMC118X series magnetoresistive elements and a dedicated ASIC performing amplification, offset cancellation, automatic degaussing strap driving, and 12-bit analog-to-digital conversion. This ensures compass heading accuracy of 1° to 2° for navigation applications.

The device’s digital output and I²C interface facilitate seamless integration with common microcontrollers. Typical use cases include mobile phones, netbooks, personal navigation devices, and automotive or consumer electronics requiring robust geomagnetic sensing across X, Y, and Z axes.

Primary performance features of the Honeywell HMC5883L-TR

Performance specifications of the HMC5883L-TR target engineers seeking both precision and efficiency. The sensor’s magnetic field range is ±8 gauss, supporting environments exposed to strong magnetic interference. Field resolution reaches 2 milli-gauss, and linearity is maintained to within 0.1% of full scale across a ±2.0 gauss input, minimizing measurement errors.

The integrated 12-bit ADC, coupled with advanced signal processing, provides noise floors low enough to enable reliably accurate heading detection in both static and dynamic scenarios. Output data rate options up to 160 Hz in single measurement mode and up to 75 Hz in continuous mode allow real-time system responsiveness. Built-in self-test functionality facilitates automated post-assembly validation, reducing engineering time during mass production.

Electrical characteristics and connectivity information for the Honeywell HMC5883L-TR

The HMC5883L-TR operates at supply voltages between 2.16V and 3.6V, making it compatible with battery-powered products and low-voltage system designs. Typical current draw is just 100 μA, which aligns with the needs of energy-conscious applications.

Communication is handled via a standard I²C serial protocol with a maximum clock rate of 400 kHz. Read and write operations use 8-bit addresses (0x3D for read, 0x3C for write). I²C pins feature Schmitt trigger hysteresis for stable data acquisition at voltage transitions. The sensor provides a DRDY (Data Ready) interrupt output, signaling when new data is loaded for retrieval.

Physical enclosure and PCB mounting considerations for the Honeywell HMC5883L-TR

Engineers will benefit from the tiny profile of the HMC5883L-TR, which is conveniently housed in a 16-LCC surface-mount package, facilitating high-density board layouts. Recommended PCB footprint dimensions and pad layout are provided to optimize electrical performance and manufacturability. The device falls under Moisture Sensitivity Level (MSL) 3, with a peak reflow temperature of 260°C, accommodating industry-standard assembler and reflow processes.

The package’s mechanical robustness supports automated high-speed SMT assembly processes. For optimal performance, PCB designers should avoid placing ferrous materials or copper traces directly under or near the sensor.

Guidelines for assembly, soldering, and capacitor selection for the Honeywell HMC5883L-TR

Proper assembly procedures for the HMC5883L-TR are essential for functional reliability. Honeywell recommends a 4-mil stencil and full solder paste coverage for electrical contact pads. The reflow soldering process is compatible with both leaded and lead-free profiles; hand soldering is discouraged due to alignment sensitivity.

External capacitors—specifically, one reservoir (C1, 4.7 μF) and one set/reset strap (C2, 0.22 μF)—should be low ESR ceramic types. If using small SMT packages unable to guarantee low ESR (<200 mΩ), larger case sizes should be considered. Reservoir capacitors help reduce transient voltage drops, ensuring stable performance across all operating modes.

Recommended engineering techniques for layout and evaluation with the Honeywell HMC5883L-TR

A successful HMC5883L-TR implementation depends on strategic PCB layout and signal integrity management. To reduce magnetic noise—which can degrade measurement accuracy—engineers should use non-ferrous PCB materials and remove power/ground planes under the sensor. Trace routing near critical pins should be minimized or isolated, and pull-ups for I²C lines should be sized according to application requirements.

The DRDY interrupt pin can be monitored to optimize system response timing, especially in applications demanding high output rates. The built-in self-test circuit enables rapid in-circuit validation after assembly, allowing engineers to guarantee functionality before deploying the product into the field.

Use cases and application examples for the Honeywell HMC5883L-TR

The HMC5883L-TR’s advanced features align with a host of navigation and orientation-sensitive devices. Typical application scenarios include:

Mobile phones and tablets, where digital compass functions enable pedestrian navigation and augmented reality.

Automotive dashboard and personal navigation devices, providing reliable compass heading even in areas subject to electromagnetic disturbances.

Consumer electronics such as gaming controllers, smart wearables, and netbooks, where accurate motion and position tracking are required.

Industrial automation and robotics, supporting orientation and heading calculations for automated guided vehicles (AGVs) or machine alignment.

Alternative or substitute models for the Honeywell HMC5883L-TR

Given the HMC5883L-TR’s status as an obsolete product, engineers may need to explore suitable alternatives. Potential replacement models include other magnetoresistive, Hall effect, or MEMS-based magnetic sensors offering comparable three-axis measurement capabilities, I²C interfacing, and low-power operation. Key parameters when evaluating replacements are measurement range, resolution, ADC bit depth, pin compatibility, and software library support for compass algorithms. Exact part numbers should be selected according to detailed system requirements and supply chain availability.

Conclusion

The Honeywell HMC5883L-TR magnetoresistive sensor offers a sophisticated, energy-efficient, three-axis measurement solution with robust electrical and mechanical integration features tailored for navigation and orientation applications. Its combination of high-resolution sensing, low power draw, and flexible system interfacing makes it a preferred choice for design engineers addressing challenging geomagnetic measurement problems. As the product reaches end-of-life status, attention to best practices in system design and careful selection of equivalent models ensures continuity and reliability in mission-critical applications.
