Product Summary PowerQUICC II Pro Processor MPC8313EZQAGDC

The MPC8313EZQAGDC, part of NXP’s (formerly Freescale Semiconductor) PowerQUICC II Pro family, is a highly integrated microprocessor built to address a variety of embedded system applications. With a clock speed of 400 MHz and a 32-bit PowerPC e300c3 core, the MPC8313EZQAGDC delivers a cost-effective, low-power solution tailored for use in printing and imaging systems, network switches and line cards, NAS and VPN routers, intelligent NICs, and industrial controllers.

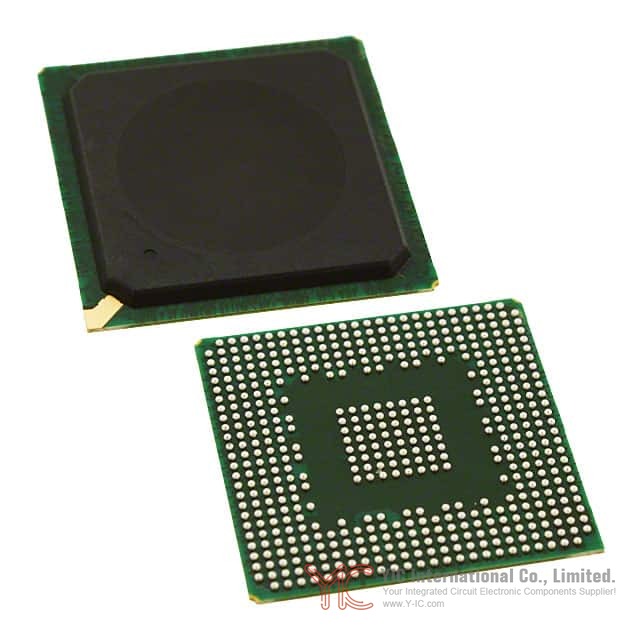

Fabricated in a robust 516-ball thermally enhanced plastic BGA (TEPBGA, 27 x 27 mm), the MPC8313EZQAGDC brings together CPU performance, advanced memory and peripheral interfaces, integrated security accelerators, and comprehensive power management. Its balanced feature set makes it particularly attractive for systems requiring a blend of real-time networking, data handling, and scalable connectivity.

CPU Architecture and System Capabilities of the MPC8313EZQAGDC

At the foundation of the MPC8313EZQAGDC is the PowerPC e300c3 core. Operating up to 400 MHz, this single-core, 32-bit processor supports the Power Architecture, ensuring high performance and efficient instruction throughput. The core features 16 KB each of instruction and data caches, an integrated floating point unit, and dual integer units, optimizing it for both computational and control tasks.

Memory subsystem support is robust, highlighted by a flexible DDR1/DDR2 memory controller. The memory controller accommodates single 16- or 32-bit interfaces for DDR1/DDR2 SDRAM, supporting frequencies up to 333 MHz and capacities up to 2 Gbit (DDR1) and 4 Gbit (DDR2). The controller features versatile topology support, power management through on-the-fly clock enable (CKE), and support for up to 16 simultaneous open pages—ideal for balancing bandwidth and latency in demanding applications.

A standout feature in the MPC8313EZQAGDC is its security engine (SEC 2.2, not available on MPC8313 variants without -E), which can offload cryptographic calculations such as DES, 3DES, AES, SHA-1, MD5, and HMAC, significantly enhancing the throughput of secure data flows—imperative for VPN routers and secure industrial controls.

Backward software compatibility with prior PowerQUICC devices minimizes software migration effort, and the processor incorporates an intelligent programmable interrupt controller, as well as comprehensive power management supporting PCI Power Management states (D0-D3).

Built-in Interfaces and Peripheral Options of the MPC8313EZQAGDC

The MPC8313EZQAGDC is designed for flexible connectivity and peripheral integration, key for modern embedded designs:

Dual Enhanced Three-Speed Ethernet Controllers (eTSECs): Each supports 10/100/1000 Mbps rates with a choice of RGMII, SGMII, MII, RMII, or RTBI interfaces. There’s support for advanced features including VLANs, jumbo frames (up to 9.6 KB), IEEE 802.1 tag handling, TCP/IP acceleration, and IEEE 1588 timestamping. Wake-on-LAN support enables low-power operation in networked environments.

PCI Controller: Supporting 32-bit data paths at up to 66 MHz, this controller is PCI 2.3-compliant and operates in both host and agent modes, including support for hardware arbitration and coherency.

USB 2.0 Dual-Role Controller: It offers both host (root hub with one downstream port) and device functionality—with integrated PHY for high/full-speed operation and ULPI/UTMI support when external PHY is used.

Serial Interfaces: Includes two I²C controllers, one SPI, and dual UARTs. The SPI block is full-duplex and supports configuration and connection to other PowerQUICC devices and common embedded peripherals.

Enhanced Local Bus Controller: Enables connection to various parallel memory devices, legacy peripherals, and ASICs/FPGAs, with programmable configurations (GPCM/UPM/FCM modes) for asynchronous, synchronous, and Flash memory connections.

DMA Controller: A four-channel controller facilitates high-bandwidth, low-overhead memory and peripheral transfers, supporting both chained and misaligned transfers.

Additional peripherals include programmable timers, a general-purpose I/O port (GPIO, configurable for 2.5V or 3.3V levels), and a JTAG/COP interface for boundary scan and hardware debug.

Electrical Specifications, Power Consumption, and Thermal Properties of the MPC8313EZQAGDC

The MPC8313EZQAGDC is specified for robust operation and flexible voltage requirements:

Power Supply: The device requires coordinated supply rails (core and multiple I/O voltages at 1.05V, 1.8V, 2.5V, and/or 3.3V, depending upon interface selection). Proper sequencing is recommended but not strictly enforced, although simultaneous rail ramping requires ensuring certain conditions for avoiding current spikes.

Power Consumption: Typical core power dissipation, excluding I/O, varies based on utilization and operating mode. Low-power states (such as PCI D3) further reduce energy demand for battery-powered or green applications.

Clocking: A flexible PLL-based subsystem allows for diverse system clock input frequencies. The device can function as PCI host (using SYS_CLK_IN) or PCI agent (using PCI_SYNC_IN), with clock ratios configurable at power-on.

Thermal Performance: The 27x27 mm 516-TEPBGA package is engineered for effective heat dissipation, with published thermal resistance (junction-to-ambient, -board, -case) figures supporting both passive and active cooling strategies. Guidance for heat sink selection, thermal grease, and PCB attachment is provided for system-level modeling.

Packaging, Pin Configuration, and Physical Specifications of the MPC8313EZQAGDC

Physical integration is centered on the 516-ball TEPBGAII package, with comprehensive pinout documentation for signal integrity and layout planning. Key package attributes include:

Dimensions: 27 mm x 27 mm footprint

Ball assignment matrix covering power, ground, clocks, DDR, PCI, Ethernet, USB, local bus, GPIO, and configuration pins

Mechanical construction and tolerances per ASME Y14.5M-1994

Lead-free solder balls for RoHS compliance

Placement and routing advice, especially for thermal and power decoupling, is critical to maintain signal and thermal integrity.

Design Guidelines and Implementation Notes for the MPC8313EZQAGDC

Engineers integrating the MPC8313EZQAGDC should observe several design recommendations:

Power and Decoupling: Each power and ground pin must be properly connected, with local high-frequency decoupling capacitors placed as close as possible to supply balls. Bulk capacitors (100–330 μF, low ESR) should be distributed on power planes near the device.

PLL Power Filtering: Platform, core, and SerDes PLLs require independently filtered supply rails. Proper filter configuration (using dedicated low-ESL SMT capacitors and minimum-inductance routing) is essential for clock quality and EMI reduction.

Unused Inputs and Outputs: All unused inputs must be tied high or low as specified. Open-drain outputs and JTAG interface pins require pull-up resistors (typically 10 kΩ) for correct logic levels and predictable power-on configuration.

Memory and Clock Trace Design: The DDR controller, PCI, Ethernet (notably SGMII/SerDes), and local bus all require careful impedance matching, controlled trace lengths, and clock distribution planning to achieve rated performance and avoid data corruption or timing errors.

Security Implementation: For secure design scenarios, the crypto engine should be enabled and offloads supported by system firmware to maximize throughput without impacting host software.

JTAG/COP: For product test, production, and debugging, ensure correct header and connection to the boundary scan and COP debug port, in compliance with IEEE 1149.1.

Alternative or Compatible Models for the MPC8313EZQAGDC

In evaluating alternatives for the MPC8313EZQAGDC, engineers should focus on key attributes: PowerPC-based embedded processors, similar peripheral and memory integration, and package compatibility. Within the NXP PowerQUICC family, possible alternatives include:

MPC8313VR Series: A close variant differing in package, core speed, or security engine availability.

MPC8347 and MPC8360 Series: Feature-similar devices with higher-performance cores (e.g., e300c4), additional Ethernet controllers, or RapidIO support. Not always pinor software-compatible but may offer a smoother migration path for existing PowerQUICC designs.

Legacy PowerQUICC II/III Components: Such as the MPC8270 or MPC8560, offering higher integration or performance, but with significant architectural differences that may require board and software redesign.

For non-NXP solutions, selection must consider differences in architecture (ARM, MIPS, etc.), which will drive up software porting effort, and may alter physical and electrical interface requirements.

Replacement decisions should be balanced against long-term availability, support for legacy software, and verified peripheral support for the intended application.

Conclusion

The MPC8313EZQAGDC PowerQUICC II Pro processor delivers a tailored blend of PowerPC computing, mixed high-performance interface support, and advanced security capabilities in a low-power, compact package. Its flexibility in memory interfaces, peripheral integration, and extensive system design documentation make it a sound choice for engineers architecting embedded networked solutions, industrial controls, and secure communication endpoints.

By adhering to recommended power, thermal, and layout practices, and leveraging the MPC8313EZQAGDC’s robust peripheral integration, system integrators can achieve efficient, high-throughput designs that scale to meet modern embedded application demands. When considering system updates or inventory requirements, a review of equivalent PowerQUICC II Pro offerings and an understanding of pin/package compatibility will streamline both product selection and migration planning.
