Vishay Dale WSL2512R0100FEB

Summary of the Vishay Dale WSL2512R0100FEB 2512 Surface-Mount Resistor

The Vishay Dale WSL2512R0100FEB is a surface-mount, power metal strip® resistor engineered for precision current sensing applications. It features an extremely low resistance value of 0.01 ohms with a tight tolerance of ±1%, and is rated for 1 watt power dissipation within a 2512 (6432 metric) package size. This model adheres to the automotive AEC-Q200 qualification standard, indicating its suitability for rigorous automotive environments. The resistor’s design incorporates moisture resistance and pulse withstanding capabilities, making it appropriate for harsh operational conditions. Engineers sourcing components for current measurement tasks will find the WSL2512R0100FEB an optimal balance of precision, reliability, and ruggedness.

Design Structure and Material Properties of the WSL2512R0100FEB Resistor

At the heart of the WSL2512R0100FEB lies Vishay’s Power Metal Strip® technology, which utilizes an all-welded construction combining a solid metal resistive element with plated copper terminals. The resistive element is made from either nickel-chrome or manganese-copper alloy, specifically chosen for its low temperature coefficient of resistance (TCR), generally below 20 ppm/°C, which ensures minimal resistance variation under temperature fluctuations. The terminals feature a multilayer finish consisting of a solid copper base, a 20 µin nickel underlayer, and a minimum of 100 µin pure tin plating, enhancing solderability and corrosion resistance. This robust construction also imparts sulfur resistance, critical for reliability in high sulfur environments often encountered in automotive or industrial applications.

Key Electrical Parameters and Ratings for the WSL2512R0100FEB Device

The WSL2512R0100FEB is optimized for ultra-low resistance values down to 0.0005 ohms across the broader WSL series, with this particular model fixed at 0.01 ohms ±1%. It operates consistently up to a power rating of 1 watt, with derating applied linearly for resistance values exceeding 0.1 ohm and reaching 80% of rated power at 0.5 ohms. The resistor exhibits very low inductance, typically ranging between 0.5 nH and 5 nH, ensuring excellent high-frequency performance and signal integrity crucial for precision current sensing. Its low thermal electromotive force (EMF), generally under 3 µV/°C, minimizes error voltages that can arise from temperature gradients in measurement circuits. The maximum working voltage is defined primarily by power dissipation limits rather than voltage sensitivity, and the device also offers excellent pulse load capabilities as quantified through Vishay’s Joule Wizard tool.

Heat Tolerance and Environmental Durability of the Vishay Dale WSL2512R0100FEB

The device demonstrates strong resistance to environmental stresses, including moisture ingress and sulfur-induced corrosion, due to its protective silicone coating and material selection. It complies with the stringent automotive AEC-Q200 standards, certifying it for use in automotive electronics where temperature extremes, vibration, and humidity resistance are mandatory. The TCR performance is well-characterized and stable up to +155 °C, where improved TCR control is verified through Vishay’s qualification processes. Additionally, the welded terminal construction provides enhanced mechanical durability, maintaining terminal heights and solder joint integrity even under thermal cycling. These attributes make the WSL2512R0100FEB suitable for harsh and safety-critical application scenarios.

Packaging Details, Mounting Methods, and Physical Size of the WSL2512R0100FEB Series

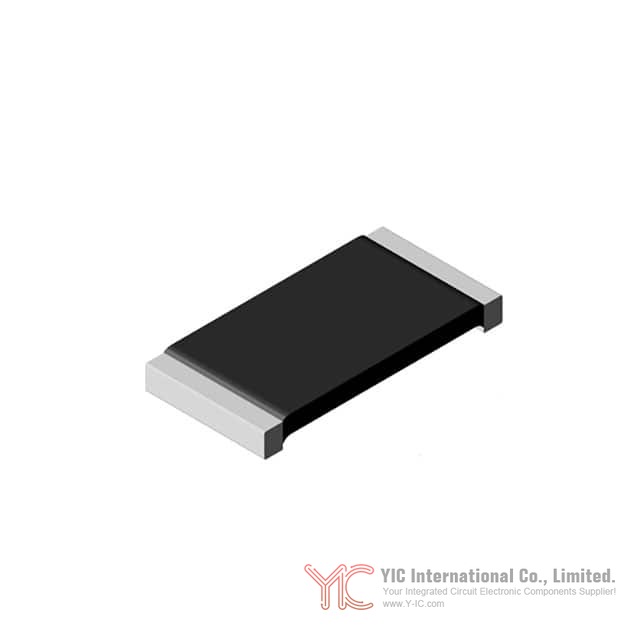

The resistor is packaged in an industry-standard 2512 (6432 metric) surface-mount resistor format, allowing compatibility with automated pick-and-place manufacturing and standard PCB footprint designs. The terminals’ height and physical dimensions conform to recent Vishay design change notices ensuring consistent solderability and assembly quality. Components are supplied in embossed carrier tape conforming to EIA-481 standards, suitable for high-speed assembly lines. 3D CAD models and soldering profile recommendations are available to facilitate seamless integration into engineers’ design and process flows.

Usage Considerations and Technical Advantages of the WSL2512R0100FEB in Current Measurement Applications

Engineers selecting the WSL2512R0100FEB will appreciate its extremely low resistance and tight tolerance, which enable accurate current measurement with minimal power loss and heat generation. The low inductance and low thermal EMF characteristics reduce measurement noise and offset errors, critical for analog and digital precision sensing circuits such as motor control, battery management systems, and power distribution monitoring. Its compliance with AEC-Q200 assures suitability in automotive and other mission-critical electronics, ensuring long-term stability and reliability under demanding operating conditions. The welded construction prolongs component life and preserves integrity under pulse loads and thermal excursions. Designers should also consider the resistor’s linear power derating characteristics when setting operating conditions for higher resistance values within the WSL family.

Alternative and Substitute Models for the Vishay Dale WSL2512R0100FEB Resistor

For applications requiring higher current ratings, the WSL2512R0100FEB can be upgraded to the WSLP series, which is designed to handle increased current loads while preserving the low-resistance and precision features. Should a circuit design call for a zero-ohm jumper or a resistor with virtually negligible resistance, the WSL-9 series offers an alternative tailored to that requirement. Replacement or equivalent options chosen should be evaluated for matching the welded terminal construction, TCR performance, pulse capability, and packaging format to maintain design integrity and reliability. Vishay provides extensive documentation and customization capabilities to facilitate precise selection within the Power Metal Strip® resistor product family.

Conclusion

summarizing the advantages and key evaluation points of the WSL2512R0100FEB

The Vishay Dale WSL2512R0100FEB 0.01 ohm precision chip resistor stands out as a compelling choice for engineers focused on accurate current sensing in automotive and industrial environments. Its blend of low resistance, tight tolerance, low thermal EMF, and low inductance, coupled with robust welded construction and AEC-Q200 qualification, ensures superior performance and reliability. Detailed electrical and mechanical specifications, including packaging and mounting compatibility, support easy integration into contemporary electronics manufacturing processes. When system demands evolve toward higher currents or special functions like zero-ohm jumpers, Vishay’s WSLP and WSL-9 series provide logical upgrade paths. Overall, the WSL2512R0100FEB embodies Vishay’s commitment to precision and durability in Power Metal Strip® resistor technology, making it a reference component for precision current measurement applications.
