Infineon Technologies S29GL128S90DHA010

Overview of the S29GL128S90DHA010 Product

The Infineon S29GL128S90DHA010 is a 128 Mbit parallel NOR Flash memory device designed for embedded applications that demand a combination of high density, fast access speed, and robust data integrity. As part of Infineon’s GL-S family, fabricated on a 65nm MIRRORBIT™ Eclipse process, the S29GL128S90DHA010 delivers eXecute-In-Place (XIP) capabilities and fast programming performance, positioning it as a compelling solution for code storage and data logging in industrial, automotive, and networking systems. Available in various package options, including a compact 64-FBGA (9x9mm), the device integrates advanced features like embedded error correction, versatile I/O voltages, and comprehensive sector protection.

Main Functions and Architecture of the S29GL128S90DHA010

The S29GL128S90DHA010 integrates a rich feature set optimized for reliability and flexibility:

128 Mbit capacity with a 16-bit asynchronous data bus interface.

Fast random access time of 90ns and page mode read access starting from 15ns.

Single 3.0V core supply with versatile I/O voltage support (1.65V to VCC).

Uniform sector architecture with 128 kB per sector.

Embedded 512-byte write buffer and 32-byte asynchronous page read capability.

Advanced sector protection with both volatile (DYB) and non-volatile (PPB) options.

Internal hardware ECC enables transparent single-bit error correction per page.

Multiple package options, including TSOP, various FBGA footprints for wide design compatibility.

Robust operation over industrial (-40°C to +85°C), industrial plus (-40°C to +105°C), and automotive (AEC-Q100 Grade 2/3) temperature ranges.

100,000 program/erase cycles and 20-year data retention ensure long field-life.

The internal architecture is controlled via two main sections: the Host Interface Controller (HIC) manages external data exchange and command sequencing, while the Embedded Algorithm Controller (EAC) handles nonvolatile array operations and status management. This distinction allows for efficient separation between user-accessible operations and internal state management.

Memory Structure and Address Mapping of S29GL128S90DHA010

The S29GL128S90DHA010 supports several logically distinct address spaces:

Main Flash Memory Array: used for primary data/code storage, organized in uniform 128 kB sectors.

ID/CFI Space: provides JEDEC manufacturer and device identification, as well as a parameter block accessible via standard command entry. This enables automatic hardware and software setup based on detected device capabilities.

Secure Silicon Region (SSR): a 1024-byte one-time programmable (OTP) region, including both factory-locked and customer-programmable segments for permanent data such as unique device IDs.

Sector Protection Structures: comprising PPB bits (permanent, non-volatile) and DYB bits (volatile) per sector, alongside a lock register and password-protected features for enhanced security.

Only one address overlay (ASO) can be active at a time, and dedicated commands select which logical address space is available for host access.

Data Security Methods in S29GL128S90DHA010

Ensuring data integrity and preventing unintended writes or erases are key requirements for many embedded systems. The S29GL128S90DHA010 addresses this by offering:

Write inhibit during power-on reset and when VCC drops below defined thresholds.

Advanced sector protection (ASP), which combines persistent (non-volatile PPB bits) and dynamic (volatile DYB bits) locking per sector. PPB bits can be globally locked or unlocked using persistent or password-protected modes.

Secure silicon region (SSR) that is permanently lockable to prevent post-programming access, ideal for storing critical security parameters or device identifiers.

Hardware write protection via WP# pin, used to instantly lock either the highest or lowest address sector, depending on device configuration.

Password protection mode, employing a 64-bit OTP password to enable or disable modifications to PPB bits, with the ability to permanently lock the password region to prevent future changes.

Engineers should note that once the SSR or password-protection lock bits are programmed, these settings are irrevocable, underscoring the need for careful configuration during system initialization.

S29GL128S90DHA010 Read, Write, and Erase Procedures

The S29GL128S90DHA010 supports asynchronous random and page mode reads, enabling XIP capability and fast data retrieval. Page mode read speeds are optimized for up to 15ns within a 32-byte page, minimizing CPU wait times in code execution scenarios.

Programming is accomplished via word programming or more efficiently through the 512-byte write buffer, which allows multiple word bursts per operation—significantly speeding up firmware updates and mass programming. The device also supports incremental programming, though repeated writes to the same page will disable ECC protection for that page until the next erase.

Erase operations can target individual sectors or the entire chip, and robust status feedback is provided through status register reads, data polling, and the RY/BY# output.

Both program and erase operations can be suspended and resumed, supporting real-time system requirements where memory must occasionally be accessed even during ongoing flash cycles.

Built-in Algorithms and Performance Metrics of S29GL128S90DHA010

All program and erase operations are managed by the embedded algorithm controller (EAC), which executes complex command sequences and ensures correct voltage/charge application internally. Embedded algorithms support:

Word and write buffer programming, with automatic ECC code calculation and storage on first write to a given page.

Transparent single-bit ECC correction on each read, enhancing data robustness without host intervention.

Suspend/resume for both programming and erase operations, increasing system responsiveness in multi-tasking environments.

Status monitoring by multiple mechanisms: detailed status registers, legacy data polling (DQx bits), and RY/BY# hardware pin.

Typical program and erase times are specified at both standard (up to +85°C) and extended (up to +105°C) industrial/automotive temperatures, with write buffer programming offering the highest throughput.

Data Reliability and Lifespan of S29GL128S90DHA010

The S29GL128S90DHA010 offers industry-standard endurance and retention:

Minimum 100,000 program/erase cycles per sector, ensuring longevity even in intensive logging applications.

20-year data retention capability, thanks to the underlying 65nm MIRRORBIT™ Eclipse technology.

Automatic ECC hardware corrects any single-bit error encountered during read access to programmed pages, though caution is advised to avoid multiple incremental writes to a page, which will disable ECC for that page until erased.

These attributes make the device suitable for deployment in harsh or safety-critical environments where data corruption or loss is not acceptable.

Electrical Specifications and Physical Attributes of S29GL128S90DHA010

Electrically, the S29GL128S90DHA010 operates from a single 2.7V to 3.6V core supply, with I/O supply configurable from 1.65V to VCC, supporting direct interfacing with a variety of processors or FPGAs. Absolute maximum ratings are compliant with JEDEC standards, and all device inputs/outputs are tolerant of production and application-related voltage fluctuations, within specified limits.

Physically, the device is offered in several package types, including:

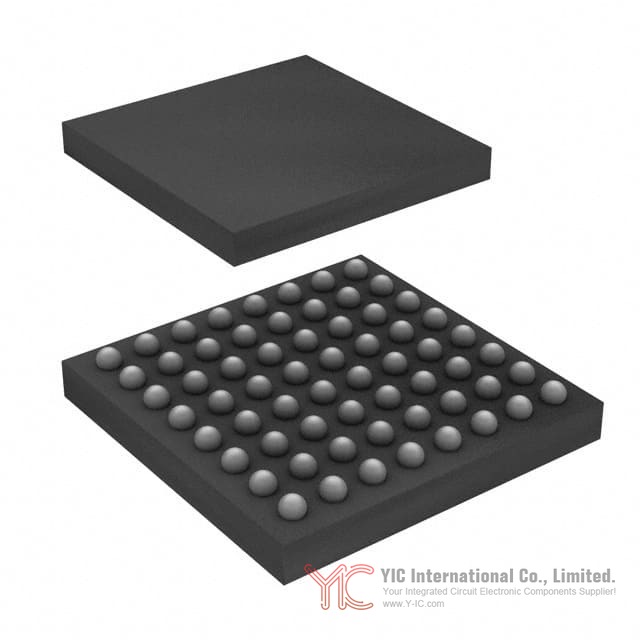

64-ball LAE FBGA (9x9mm) for optimized PCB area usage in dense layout designs.

56-pin TSOP for legacy compatibility.

Other BGA options (LAA, VBU), with details provided in the documentation on ball assignments and mechanical dimensions.

Designers should select the appropriate package and temperature rating based on system-level constraints and target environmental exposure.

Alternative or Substitute Models for S29GL128S90DHA010

Within Infineon's GL-S family, several related models offer alternative densities and interface options, supporting design scalability or second-sourcing:

S29GL256S: 256 Mbit density, otherwise similar interface and feature set.

S29GL512S: 512 Mbit density, for greater code/data storage needs.

S29GL01GS: 1 Gbit density, supporting large-scale data logging or complex applications.

All these devices are available in similar package, voltage, and temperature options, with software and command set compatibility maintained across the family. For systems requiring straightforward migration to higher capacity, or as direct replacements in qualified designs, these alternatives are ideal candidates.

Conclusion

The Infineon S29GL128S90DHA010 brings together fast access speeds, robust data protection, advanced error correction, and flexible sector architecture, establishing itself as a key solution for embedded systems demanding high reliability and configurability. Engineers evaluating non-volatile code or data storage for industrial, networking, or automotive applications will benefit from the S29GL128S90DHA010’s longevity, protection schemes, and ease of integration. The device's broad family ecosystem provides scalability, allowing future-proofing and risk mitigation for component sourcing. By leveraging its advanced feature set and proven process technology, system designers can confidently address critical storage requirements in next-generation designs.
