onsemi MC78M08BDT

MC78M08BDT Linear Voltage Regulator by onsemi Product Summary

The MC78M08BDT from onsemi is a fixed-output linear voltage regulator designed to provide precise and reliable 8V DC regulation for applications demanding up to 500mA output current. Built in a compact DPAK package, the MC78M08BDT serves as an ideal solution for local, on-card voltage stabilization in power management designs where space and robust thermal management are key concerns. As a member of the established MC78M00, MC78M00A, and NCV78M00 series, it offers trusted performance for a wide range of industrial, consumer, and automotive applications.

Main Characteristics and Integrated Safety Features of MC78M08BDT

The MC78M08BDT offers a set of features that simplify engineering integration while enhancing overall circuit reliability:

No External Components Required: Simplifies board layout and speeds design cycles.

Internal Thermal Overload Protection: The regulator can automatically shut down in excessive temperature conditions, safeguarding against thermal damage.

Internal Short Circuit Current Limiting: Protects both the regulator and downstream circuitry in the event of output shorts.

Output Transistor Safe-Area Compensation: Provides additional safeguard by reducing output short circuit current at high pass transistor voltages.

Devices in the MC78M00A series provide a high-accuracy output (±2%), which supports precision-dependent applications. The MC78M08BDT, adhering to strict quality standards, features ESD protection exceeding 2000V Human Body Model and 200V Machine Model, contributing to robust operation in demanding environments.

MC78M08BDT Technical Specifications and Performance Metrics

Engineers evaluating the MC78M08BDT will appreciate its well-defined electrical and thermal characteristics. With a maximum output current of 500mA (with adequate heatsinking), it is especially suitable for moderate-power loads. The device operates over a wide junction temperature range (up to +125°C for select sub-series), ensuring stable performance in varying thermal environments.

Key operational definitions include:

Line Regulation: How much the output voltage changes in response to variations in input voltage, measured under low dissipation.

Load Regulation: Variance in output voltage as the load current changes, with constant chip temperature.

Maximum Power Dissipation: The ceiling of device heat dissipation before regulatory specifications are affected.

Input Bias Current: The portion of input current not delivered to the load.

Output Noise Voltage: The AC component at the output, important for sensitive analog designs.

Long-Term Stability: The output voltage stability observed during accelerated life tests and maximum power dissipation scenarios.

Thermal management is facilitated by the DPAK package’s heat dissipation path, with the heatsink surface connected to Pin 2 (ground), and a design that supports straightforward mounting to copper pads on PCBs for effective heat transfer.

MC78M08BDT Package Type, Pin Layout, and Physical Design Details

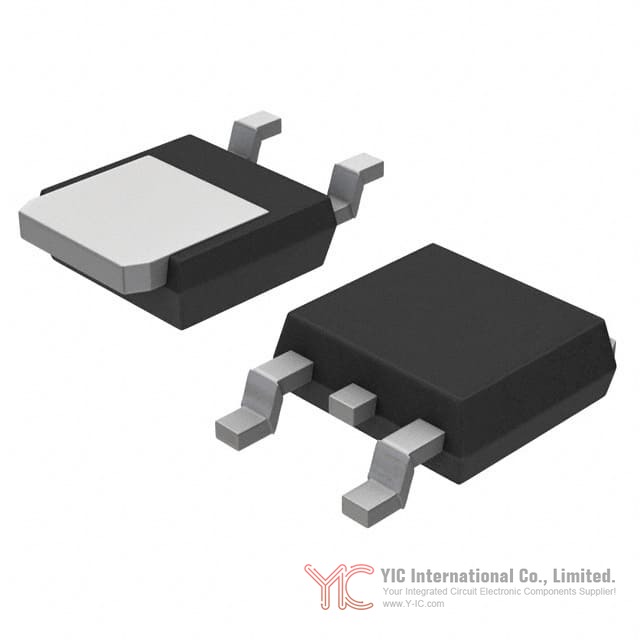

The MC78M08BDT is supplied in a DPAK-3 case (onsemi Case 369C), optimized for surface-mount applications. The mechanical outline provides clear differentiation for pin assignments:

Pin 1: Input

Pin 2: Ground (also serves as the heatsink connection)

Pin 3: Output

The DPAK’s compact footprint supports high-density layouts and automated assembly processes. Mounting recommendations emphasize proper thermal contact and minimal lead lengths, both necessary for maximizing device longevity and maintaining output stability.

MC78M08BDT Engineering Implementation Recommendations

The MC78M08BDT is engineered for straightforward integration into designs requiring steady voltage regulation. Its protection features make it well suited for various engineering scenarios, such as:

Local Step-Down Regulation: Feeding sensitive loads from a higher voltage bus.

Current Source Applications: When configured with an appropriate series resistor, the device can serve as a constant current source.

Output Current Boosting: Combining the MC78M08BDT with a PNP power transistor (e.g., MJ2955) allows output current extension up to 5A, albeit with the caveat that short circuit immunity is diminished in this topology.

Adjustable Output: Integration with operational amplifiers can allow regulation at higher or intermediate output voltages, though minimum obtainable output remains about 2V above the fixed regulator value.

Engineering best practices include:

Use of input bypass capacitors, especially when deployed far from the filter capacitor or when high output capacitance is present, to ensure stability and filter high-frequency noise.

Selection of capacitors with low impedance at high frequency (tantalum, mylar) and mounting across the input terminals with minimum lead lengths.

Avoidance of ground loops and excessive lead resistance to preserve regulation accuracy.

Alternative or Substitute Options for MC78M08BDT in the MC78M00 Family

For applications requiring different output voltages, higher accuracy, or automotive qualification, other members of the MC78M00 series offer direct compatibility or enhanced features:

MC78M05 (5V), MC78M12 (12V), MC78M15 (15V), and respective MC78M00A high-accuracy and NCV78M00 automotive-qualified variants meet similar performance and protection standards, with output currents up to 500mA.

The NCV prefix devices are AEC-Q100 qualified and PPAP capable, making them suitable for vehicle designs and other regulated environments subject to unique site and control requirements.

When considering replacements, engineers should verify voltage output, accuracy grade, package, and regulatory certifications to ensure full compatibility with application and system requirements.

Conclusion

The MC78M08BDT linear voltage regulator exemplifies onsemi’s commitment to robust, integrated circuit protection and streamlined design for modern power management challenges. Its versatile features, strong protection mechanisms, and easy-to-integrate package make it a highly attractive solution for both new designs and legacy system upgrades where reliable 8V regulation is required. With a range of equivalents within the MC78M00 series, engineers and procurement specialists can select the optimal variant suited to their precise application demands, supporting efficient and resilient electronic system development.
