Overview of the ADP7105ARDZ Linear Voltage Regulator

The ADP7105ARDZ by Analog Devices is a high-performance, low dropout (LDO) linear voltage regulator optimized for applications requiring low noise, high power-supply rejection, and robust performance across a wide input voltage range. Capable of handling input voltages from 3.3 V to 20 V and delivering up to 500 mA output current, this device is a compelling solution for engineers seeking to regulate high-density analog and mixed-signal circuits. Applications that benefit from the ADP7105ARDZ include ADC/DAC supply rails, precision analog instrumentation, RF circuits, and medical instrumentation, where power integrity and noise immunity are critical design factors.

Main Performance Parameters and Features of the ADP7105ARDZ

A summary of the core parameters and integrated feature set highlights the selection advantages of the ADP7105ARDZ:

Input Voltage Range: 3.3 V to 20 V supports a broad spectrum of power sources.

Output Current: Delivers steady loads upto 500 mA.

Output Voltage Options: Available in fixed variants (1.8 V, 3.3 V, 5 V) and adjustable version (1.22 V to 19 V).

Low Output Noise: Fixed output variants offer RMS noise as low as 15 μV, with competitive noise performance even in adjustable mode.

Power Supply Rejection Ratio (PSRR): 60 dB at 10 kHz (3.3 V output), ideal for noise-sensitive blocks.

Reverse Current Protection: Prevents backflow when output exceeds input voltage.

High Accuracy: ±0.8% initial, with in-line/load/temperature accuracy as tight as −2% to +1% from −40°C to +125°C.

Quiescent and Shutdown Currents: 900 μA (typ) at full load; <50 μA in shutdown, supporting efficient system states.

Programmable Soft Start: Controls inrush currents during power-up sequencing.

Foldback Current Limit and Over-Temperature Protection: Enhances system robustness.

Programmable undervoltage lockout (UVLO) and digital power-good indicator for supervisory and sequencing requirements.

Compact Packages: Available in 8-lead SOIC and 3 mm × 3 mm LFCSP for design flexibility.

ADP7105ARDZ Package Details, Pinout, and Physical Specifications

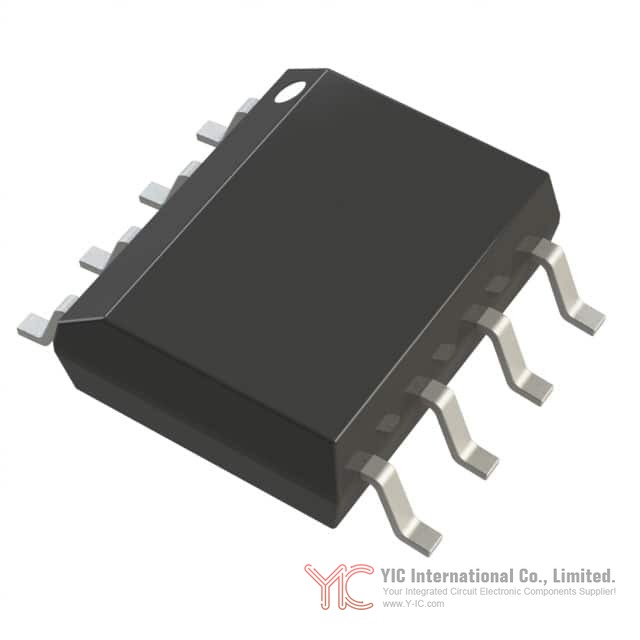

The ADP7105ARDZ is released in two popular package styles: a narrow-body 8-lead SOIC (with exposed pad for improved thermal dissipation) and an 8-lead LFCSP (3 mm × 3 mm). Both packaging options facilitate efficient thermal management and space-saving designs for dense PCBs. Attention to the exposed pad connection is critical for optimal cooling.

The device features well-defined functional pins, including VIN, VOUT, EN/UVLO (combine enable and UVLO control), SS (soft start), PG (power-good), GND, and feedback/sense pins corresponding to the selected output version. Designers will appreciate the straightforward mapping for ease of system integration and power rail sequencing.

Operating Principles of the ADP7105ARDZ

Employing a proprietary LDO architecture, the ADP7105ARDZ utilizes a reference, error amplifier, feedback network, and PMOS pass device for tight regulation. The regulator's control loop compares the reference voltage with feedback from the output, modulating the pass FET to maintain stable operation under varying line, load, and temperature conditions.

Reverse current protection is achieved via onboard comparators; when VOUT exceeds VIN by 55 mV, the PMOS is turned off, effectively blocking backfeed that can damage upstream sources or other regulators in a sequence.

The soft start function, enabled by a dedicated SS pin, programs output ramp-up profiles via an external capacitor, crucial for minimizing inrush currents and implementing multi-rail power-up sequencing in complex systems.

ADP7105ARDZ Electrical Characteristics and Performance

The ADP7105ARDZ demonstrates exemplary load and line transient response, low output noise across all operating ranges, and high PSRR over a broad frequency spectrum:

The low dropout voltage ensures operation even with minimal headroom between input and output rails.

Output accuracy is validated by minimal drift over temperature and minimal load sensitivity.

Power-good indication tracks output voltage health, flagging undervoltages or regulator faults to upstream system monitors.

Graphical performance data, such as load/line transient response and PSRR vs. frequency, provide engineers with quantitative benchmarks for design-in analysis.

Design Guidelines and Application Advice for the ADP7105ARDZ

Capacitor choice and sizing are crucial for reliable ADP7105ARDZ operation. Both input and output should be bypassed with high-quality ceramic capacitors (X5R or X7R, not Y5V/Z5U) of at least 1 μF; minimum worst-case capacitance under all operational conditions must not drop below 0.7 μF, especially when factoring in temperature and dc bias effects. Output ESR below 1 Ω is required for loop stability, with larger output capacitance values benefitting transient performance.

For adjustable output versions, resistor selection in the feedback network must consider the ADJ pin bias current to minimize setpoint error. Noise performance in these variants can be optimized further by integrating a noise reduction network around the feedback resistors as detailed in the documentation.

Programmable UVLO functionality is realized with external resistor dividers, adding flexibility for system-level sequencing and protection against input brownouts.

Protection Features, Reliability, and Heat Management in the ADP7105ARDZ

Robust current-limit and thermal shutdown functions form the backbone of the ADP7105ARDZ's protection scheme. Foldback current-limiting kicks in at ~775 mA, throttling supply under fault conditions to minimize heat and prevent PCB or device damage. Should the junction temperature exceed 150°C, thermal shutdown disables output until die temperature cools to 135°C, causing a safe oscillatory behavior in persistent short-circuit events.

For continuous reliability, total package power dissipation must be assessed using real system voltages, loads, and local PCB conditions; standard equations relating ambient/board temperature, power dissipation, and thermal resistance (θJA/ΨJB) are provided for calculations.

ADP7105ARDZ PCB Design and Layout Best Practices

Effective PCB layout underpins the ADP7105ARDZ’s performance and thermal behavior. The datasheet recommends maximizing copper area around ground and power pins, connecting the exposed pad to the ground plane, and placing bypass capacitors as close as possible to the VIN/VOUT pins. Use 0805/0603 component footprints for tight layout requirements. Designers should be aware of diminishing returns for copper area size in thermal improvement for efficient board utilization.

Alternative or Substitute Options for the ADP7105ARDZ

When qualifying or cross-referencing parts, the following attributes must be closely matched: input/output range, dropout and noise performance, PSRR, package types, protection features, and accuracy. The ADP7105ARDZ’s combination of high voltage, low noise, and rich supervisor features narrows potential alternatives—making parts in the high-voltage LDO regulator category from Analog Devices and other leading vendors the primary candidates. Competing LDOs should be validated for their input range, PSRR, noise, and protection capabilities to substitute reliably in applications such as sensitive analog rails or RF supplies.

Conclusion

The ADP7105ARDZ from Analog Devices offers a comprehensive suite of features for modern, high-reliability power subsystems, excelling in low-noise, high-PSRR, precision applications. Careful consideration of capacitor choice, PCB layout, thermal management, and protection mechanisms ensures the device’s suitability for demanding embedded, industrial, and instrumentation environments. Its strong performance and feature integration reduce design complexity and enhance power system robustness for engineers and procurement specialists selecting voltage regulation solutions.
