Analog Devices Inc. AD5686BCPZ-RL7

Summary of the AD5686BCPZ-RL7 from Analog Devices

The AD5686BCPZ-RL7 is a high-performance, quad-channel, 16-bit, voltage-output digital-to-analog converter (DAC) offered by Analog Devices. Part of the nanoDAC+ family, the device integrates four independent DACs into a compact 3 mm × 3 mm 16-lead LFCSP package, designed for applications where precision, flexibility, and board space are priorities. With support for a wide supply range (2.7 V to 5.5 V) and featuring a standard SPI-compatible interface, the AD5686BCPZ-RL7 streamlines digital-to-analog conversion in multichannel systems such as industrial automation, process control (e.g., PLC I/O cards), data acquisition, and hardware requiring programmable voltage references.

Offering both reset-to-zero or reset-to-midscale power-up behavior, advanced power-down features, and user-selectable gain options (×1 or ×2), the AD5686BCPZ-RL7 is engineered for robust operation across demanding environments and temperature ranges (−40°C to +105°C).

Primary Electrical Characteristics and Performance Metrics of the AD5686BCPZ-RL7

Engineers and procurement teams will appreciate the AD5686BCPZ-RL7’s balance of precision, accuracy, and low power consumption. Key specifications include:

Resolution: 16 bits per DAC channel

Integral Nonlinearity (INL): ±2 LSB max at 16-bit resolution, guaranteeing monotonic output

Total Unadjusted Error (TUE): ±0.1% of full-scale range (FSR) max

Offset Error: ±1.5 mV max

Gain Error: ±0.1% of FSR max

Low glitch energy: typical 0.5 nV-sec

Output drive capability: 20 mA, within 0.5 V of the supply rails

Low power consumption: as low as 1.8 mW total at 3 V supply

Logic compatibility: 1.8 V, 3 V, and 5 V digital logic inputs

Wide operating supply range: 2.7 V to 5.5 V

Operating temperature: −40°C to +105°C

These features ensure that the AD5686BCPZ-RL7 can reliably deliver accurate voltage outputs under variable system conditions.

Internal Structure and Working Mechanism of the AD5686BCPZ-RL7

At the core of the AD5686BCPZ-RL7 is a robust quad resistor-string DAC architecture, each channel buffered by a rail-to-rail output amplifier. This architecture guarantees monotonic behavior and low crosstalk between channels, simplifying signal integrity considerations in dense mixed-signal designs. The device’s output range is determined by an external reference and a user-settable gain (GAIN pin), supporting either 0 V to VREF (gain = 1) or 0 V to 2 × VREF (gain = 2).

All data is loaded using a 24-bit word through the 3-wire SPI interface, with input and DAC registers double-buffered for flexible output updates. Power-on reset functions are configurable for either zero scale or midscale, ensuring safe output states during startup. Thanks to an integrated power-down mechanism, unused channels can be put into low-current standby individually or collectively for further system-level energy optimization.

Digital Connectivity and Software Configuration of the AD5686BCPZ-RL7

The AD5686BCPZ-RL7 offers a versatile digital interface designed for easy integration with standard microcontrollers, DSPs, and FPGAs. Key features include:

Hardware-compatible with SPI, QSPI™, and Microwire® protocols

Maximum SPI clock rate: up to 50 MHz for fast updates

24-bit command structure supports per-channel control, broadcast updates, and multi-device daisy-chaining via the SDO (serial data out) pin

Optional readback function enables verification of register contents for enhanced reliability

Double-buffered architecture with input registers, DAC registers, and LDAC hardware/software control for synchronous or asynchronous updates

User-configurable LDAC masking, allowing selective and simultaneous channel updates

These interface capabilities provide engineers with precise timing and sequencing options—ideal for real-time control systems and synchronized signal generation across multiple DACs.

Power Supply and Energy Efficiency Features of the AD5686BCPZ-RL7

Power flexibility is a distinguishing feature of the AD5686BCPZ-RL7:

Three software-selectable power-down modes per channel: output connected to ground via 1 kΩ, 100 kΩ, or left open (high impedance)

Ultra-low standby current (4 μA per powered-down channel at 5 V)

Fast recovery from power-down (typically 4.5 μs), enabling rapid system state transitions

Individual channel power management: supports smart energy savings in multichannel or multiplexed applications without sacrificing output integrity

Power-on reset sequencing ensures all DAC outputs are known and stable after supply ramp-up, minimizing risk in safety-critical designs

Packaging Details, Pin Configuration, and System Integration Recommendations for the AD5686BCPZ-RL7

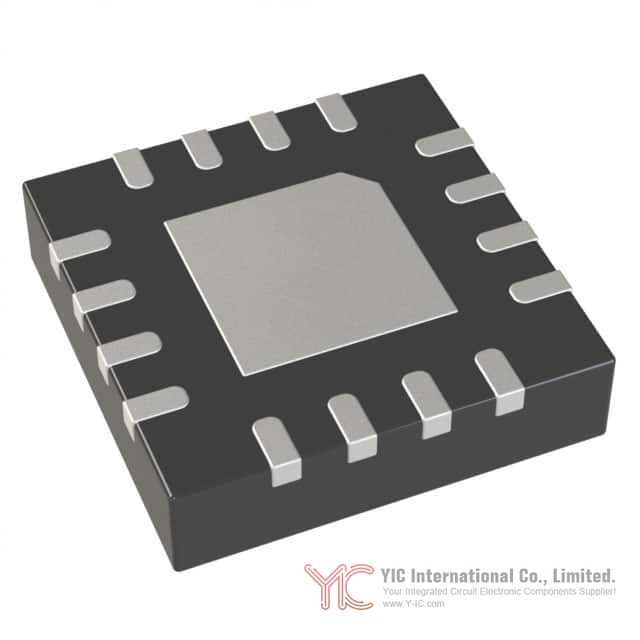

The AD5686BCPZ-RL7 comes in a 3 mm × 3 mm LFCSP package with an exposed ground pad for optimal thermal and electrical performance. Key integration recommendations include:

Pin-compatible with a 16-lead TSSOP option, offering flexibility for spaceor cost-constrained assemblies

Exposed pad should be connected to system ground for efficient heat dissipation and improved signal integrity

Includes standard analog and digital supply and reference pins, as well as hardware interface for LDAC and RESET

Recommended PCB layout practices: separate analog and digital grounds, use local supply bypass capacitors (10 μF + 0.1 μF), and ensure short, low-inductance routing for reference and output paths

Extensive application reference designs and interface examples are available for both analog (buffering, scaling) and digital (microprocessor, DSP) domains

Application Examples and Common Usage Scenarios of the AD5686BCPZ-RL7

The versatility and precision of the AD5686BCPZ-RL7 make it ideal for:

Industrial process control modules: delivering programmable setpoints and feedback voltages for automation logic and actuators

PLC I/O cards: enabling high-density analog output in compact form factors

Data acquisition systems: generating reference voltages, calibration signals, or waveforms

Digital gain and offset adjustment: in sensor interfaces or analog signal conditioning

Programmable attenuators: within RF and instrumentation circuits

Galvanically isolated interfaces: thanks to minimal signal pins, it is well-suited for control architectures using isolation ICs (e.g., ADuM-series iCoupler® devices)

Alternative or Substitute Models Comparable to the AD5686BCPZ-RL7

When considering alternates for the AD5686BCPZ-RL7, engineers may evaluate:

AD5684: A pin-compatible, 12-bit resolution variant, suitable for systems where ultra-high resolution is not required and cost constraints are paramount.

Other quad DACs in Analog Devices’ nanoDAC+ family: Models with different resolution, voltage output ranges, or interface options, ensuring footprint and functional compatibility.

Competing quad-channel 16-bit voltage-output SPI DACs from other major vendors (e.g., Texas Instruments DAC8564 or Microchip MCP4924 series), though pinout and feature set equivalence must be rigorously assessed for drop-in compatibility.

For all replacements, close comparison of performance—especially DC accuracy, glitch energy, and operating temperature—against system requirements is recommended.

Conclusion

The AD5686BCPZ-RL7 from Analog Devices is a robust, high-precision, quad-channel 16-bit DAC tailored for modern, space-conscious, and multi-output applications. With features such as selectable output gain, advanced power management, comprehensive SPI control, and reliable startup behavior, this device offers a high level of integration and accuracy suitable for the most demanding automation, instrumentation, and control systems. For design engineers and procurement professionals, the AD5686BCPZ-RL7 stands as a proven, versatile choice—supported by strong documentation and a clear upgrade path within Analog Devices’ nanoDAC+ product family.
