Analog Devices Inc. AD5683RBCPZ-RL7

AD5683RBCPZ-RL7 Product Summary

The AD5683RBCPZ-RL7, produced by Analog Devices Inc., is a member of the nanoDAC+ series, representing a highly-integrated 16-bit digital-to-analog converter (DAC) with a voltage output. Packaged in a remarkably compact 8-lead LFCSP measuring just 2 mm × 2 mm, the device is tailored for applications requiring precise voltage generation within space-constrained environments. As a single-channel DAC, the AD5683RBCPZ-RL7 utilizes an external reference and offers selectable output voltage spans, making it versatile for various high-accuracy analog signal generation tasks. With guaranteed monotonicity, robust ESD protection, and industrial-grade reliability (-40°C to +105°C operating range), the device is well-suited for demanding sectors including process control, data acquisition systems, and programmable voltage sources.

Main Characteristics of the AD5683RBCPZ-RL7

The AD5683RBCPZ-RL7 brings together high resolution and performance efficiency. Featuring 16-bit resolution, it achieves a maximum integral nonlinearity (INL) of ±2 LSB, ensuring excellent accuracy in output voltage scaling. It supports an external reference that can be leveraged for output range selection: either a direct span from 0 to V_REF or an amplified span to 0 to 2×V_REF. The device’s total unadjusted error (TUE) does not exceed 0.06% of the full scale, while its offset and gain errors are tightly bounded, permitting precise analog output control.

The output stage’s rail-to-rail buffer provides a drive capacity up to 20 mA, suitable for applications demanding moderate current sourcing. The DAC’s low glitch energy—down to 0.1 nV-sec—and rapid settling time (5 μs typical) are particularly advantageous for applications where output fidelity and response rate are critical.

Efficiency is another core strength: the AD5683RBCPZ-RL7 operates at just 1.2 mW with a 3.3 V supply and supports an ultra-low-power power-down mode, reducing supply current to 2 μA (max) at 5 V. Additionally, it accommodates logic interfaces from 1.62 V, supporting integration with a wide array of microcontrollers and FPGAs.

From an environmental and compliance perspective, the model is RoHS3-compliant, exhibits an unlimited moisture sensitivity level (MSL 1), and meets REACH standards, simplifying the procurement process for global manufacturing.

AD5683RBCPZ-RL7 Packaging Details and Pin Layout

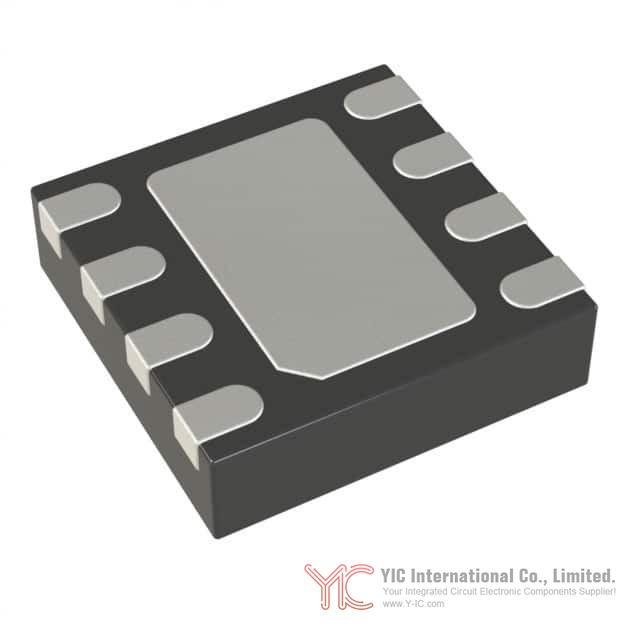

The AD5683RBCPZ-RL7 is housed in an 8-lead Lead Frame Chip Scale Package (LFCSP-UD), measuring 2 mm × 2 mm, categorizing it as an ultra-small solution for densely populated PCBs. The package includes an exposed pad on the underside for optimal thermal and electrical performance, intended for direct connection to the PCB ground plane.

Critical I/O pins are logically arranged for ease of routing. Standard signals include a V_OUT analog output, SDI and SCLK for serial data transfer, SYNC for frame synchronization, and V_REF serving as the reference voltage input. The device incorporates a V_LOGIC pin to independently set digital interface voltage levels, facilitating mixed-voltage system compatibility.

Comprehensive pin and pad layouts are available for both schematic design and PCB footprint generation, and specific function descriptions for each pin facilitate trouble-free initial hardware definition.

Electrical Specifications of the AD5683RBCPZ-RL7

The key operating parameters of the AD5683RBCPZ-RL7 define it as a high-precision component:

Supply voltage range: 2.7 V to 5.5 V

Logic interface voltage: 1.62 V to 5.5 V

Input coding: straight binary

Output voltage range: programmable as 0–V_REF or 0–2×V_REF

Default power-on state: zero scale on output

Maximum load capacitance for stability: 10 nF with 2 kΩ in parallel

Absolute maximum ratings must not be exceeded to maintain reliability. The DAC features enhanced ESD tolerance (up to 4 kV HBM), and its on-chip circuits are protected against charge-device events. For best-in-class performance, bypass capacitors (10 μF and 0.1 μF in parallel, located near supply pins) are recommended to suppress supply noise and stabilize transients.

Thermal resistance is minimized by PCB design measures such as having thermal vias and adhered ground planes beneath the exposed pad, which prevent localized heating and performance drift in precision environments.

AD5683RBCPZ-RL7 System Architecture

At its core, the AD5683RBCPZ-RL7 employs a segmented resistor string DAC topology, a proven architecture for providing guaranteed monotonicity and low noise at high resolution. The external reference input is connected to the resistor string network, and the analog output is produced via a buffered amplifier that achieves rail-to-rail swing.

Data path logic contains a 24-bit input shift register accessible through a serial interface, flanked by a double-buffered input-to-DAC register structure. This arrangement decouples incoming data from immediate output updates, allowing synchronous or asynchronous triggering of output changes via either hardware LDAC or software commands.

The gain bit within the control register allows engineers to select between two output ranges, effectively doubling (or halving) the output swing without re-scaling the reference. Power-on reset circuitry automatically sets the output to zero-scale, preventing undefined voltage transients during system startup.

Output drivers are designed for moderate capacitive and resistive loading, and auxiliary details—such as headroom limitations at high sink/source currents—are available for high-demand designs. The optional daisy-chain capability via the SDO pin supports scalable multi-channel systems.

AD5683RBCPZ-RL7 Communication and Control Methods

The device utilizes a 3-wire SPI-compatible serial interface, supporting clock rates up to 50 MHz. Timing is fully compatible with commonly used microcontrollers and digital hosts. Command and data are transmitted in 24-bit words, with flexible decoding and robust error handling.

Besides standard DAC register writes, the interface allows independent updating of the input register, output register, control register, and supports software reset and power-down commands. For readback and system-level verification, the AD5683RBCPZ-RL7 provides an SDO pin enabling output register data retrieval—a vital feature for error detection in critical applications.

For large systems, engineers can implement daisy-chaining to reduce individual device chip select lines. The enablement of daisy chaining is programmable through a dedicated control bit, ensuring streamlined board-level signal routing in multi-DAC system architectures.

Operating Modes and Power Efficiency of the AD5683RBCPZ-RL7

Beyond its normal operation, the AD5683RBCPZ-RL7 features multiple power modes. Entering the power-down state disconnects the output buffer and sets the output impedance to a known value, dramatically lowering supply current without losing register contents. For applications requiring intermittent analog output, this mode is crucial for reducing system standby power. Disabling both the buffer and the reference (by control register configuration) drops quiescent current consumption down to levels suitable for battery-powered platforms or energy-sensitive installations.

The device is designed for rapid wake-up from power-down (as low as 4 μs at 5 V), enabling efficient, immediate restoration of output if a low-latency analog signal is needed.

Thermal Management and PCB Design Guidelines for AD5683RBCPZ-RL7

Signal fidelity and long-term reliability of the AD5683RBCPZ-RL7 depend considerably on thoughtful PCB layout and thermal management. Placement on a dedicated analog plane—well isolated from noisy digital or switching sections—is recommended. Localized supply bypassing, with both bulk and high-frequency capacitors, is essential.

The exposed thermal pad should be connected via thermal vias to the main ground plane—not only to enhance electrical performance but also to provide heat dissipation, protecting the device from thermal drift in high-density assemblies.

For applications necessitating best-in-class accuracy, follow manufacturer recommendations for supply sequencing (GND before V_DD, etc.), and consider the inclusion of additional layout features such as shunt resistors for stabilizing capacitive loads and copper pours under the DAC footprint for heat sinking.

Alternative or Replacement Options for AD5683RBCPZ-RL7

In product selection and lifecycle management, appropriate alternatives to the AD5683RBCPZ-RL7 from the Analog Devices nanoDAC+ family can be considered based on required resolution, reference configuration, and interface capabilities.

AD5683R: Nearly identical to the AD5683RBCPZ-RL7, but features an integrated 2.5 V reference.

AD5682R: A 14-bit resolution variant with an internal reference and matching package, useful where lower precision suffices.

AD5681R: Provides a 12-bit option with minimal external changes required for substitution.

These models share similar package outlines, pinouts, and system integration characteristics, largely differing only in onboard reference availability and code resolution, enabling risk-reduced migration.

Comparable products in other series should be selected to match voltage interface compatibility, output range programmability, and power features. Always consult the manufacturer’s product cross-reference guides and evaluate full specifications to ensure functional and timing alignment.

Conclusion

The AD5683RBCPZ-RL7 stands out as a versatile, high-accuracy, and space-efficient 16-bit DAC solution suitable for modern analog output requirements in industrial and instrumentation systems. Its flexible output range, robust operating features, and ease of interface allow hardware and software design teams to seamlessly embed precision voltage generation capabilities within compact PCB footprints—while maintaining low power operation and maximizing compatibility with a variety of control architectures. For both new designs and legacy system upgrades, the AD5683RBCPZ-RL7 and its related models offer proven reliability and integration flexibility, giving engineers and procurement specialists confidence in their product selection decisions.
