Analog Devices Inc./Maxim Integrated MAX30112EWG+T

Overview of the MAX30112EWG+T Optical Pulse Oximeter and Heart Rate Analog Front End

The MAX30112EWG+T, developed by Analog Devices Inc./Maxim Integrated, is an advanced analog front-end (AFE) specifically designed for optical pulse oximetry and heart rate detection in wearable health and fitness applications. This integrated device serves as the core signal acquisition and processing module when paired with external LEDs and photodiodes. Utilizing a high-resolution, 19-bit optical readout channel, comprehensive ambient light cancellation, and versatile LED driver DACs, the MAX30112EWG+T delivers best-in-class power efficiency and performance for demanding biometric measurements in robust, miniature form factors.

Essential Characteristics of the MAX30112EWG+T for Wearable Health Devices

Engineered for low-power, high-performance applications, the MAX30112EWG+T incorporates multiple technical enhancements that set it apart for wearable device integration:

High-resolution 19-bit optical ADC enabling reliable measurement in low-perfusion and challenging lighting scenarios.

Built-in ambient light cancellation in both analog and digital signal paths, reducing complexity for engineers addressing varying light environments.

Supports up to 200μA ambient light input, maintaining measurement integrity under adverse and unpredictable lighting.

Flexible LED driver with two 8-bit current DACs, supporting up to 200mA full-scale current across four selectable ranges (50mA, 100mA, 150mA, 200mA), ensuring adaptability with a variety of LEDs and drive conditions.

Short exposure pulse widths (52μs, 104μs, 206μs, 417μs) optimize LED usage, crucial for power-sensitive mobile and wearable platforms.

Wide sample rate configurability from 20sps to 3.2ksps, allowing customization for different monitoring granularity and device responsiveness.

FIFO buffer capability with 32 samples supports batch processing, facilitating efficient microcontroller interfacing and reducing real-time processing load.

System monitors are mappable to interrupts, effectively offloading routine status checks from host microcontrollers.

Ultra-low power consumption—full AFE operation under 25μA at 25sps—and shutdown current as low as 1.4μA (typical), enabling continuous biometric monitoring with minimal impact on system battery life.

Suited for reflective or transmissive sensor arrangements, which broadens application scope from wristbands and in-ear monitors to fitness trackers and clinical-grade devices.

Electrical Specifications and Performance Metrics of the MAX30112EWG+T

The robust operating specifications of the MAX30112EWG+T underpin its utility in precision health monitoring systems:

Voltage rails include 1.8V (core analog/digital) and 3.1V–5.25V (LED driver), separating low-power logic from higher-power light emission.

The device supports near-zero standby currents, allowing power rails to remain active for responsive transition from sleep to full operation.

ADC features:

- Input current full scale of up to 48μA, supported by selectable DC offset removal.

- Integration times flexible from 52μs to 417μs, with selectable settings to match LED pulse requirements.

- Total input-referred noise as low as 25pArms enables precise readings in low signal conditions.

LED transmit driver:

- 8-bit resolution across four current ranges, full-scale capability up to 200mA, with fine control over drive voltage (dropout as low as 160mV).

- Compliance to various battery or regulator types, including direct boost switcher-driven or Li-ion sources.

Digital interface:

- Standard I2C compatibility with an addressable interface and full interrupt support—enabling straightforward integration with MCUs and embedded processors.

Environmental and export ratings:

- RoHS3 compliant for global deployment.

- Moisture Sensitivity Level 1 ensures reliability throughout manufacturing and product lifecycle.

- Industrial temperature range operation (-40°C to +85°C).

MAX30112EWG+T Packaging Information and Operating Conditions

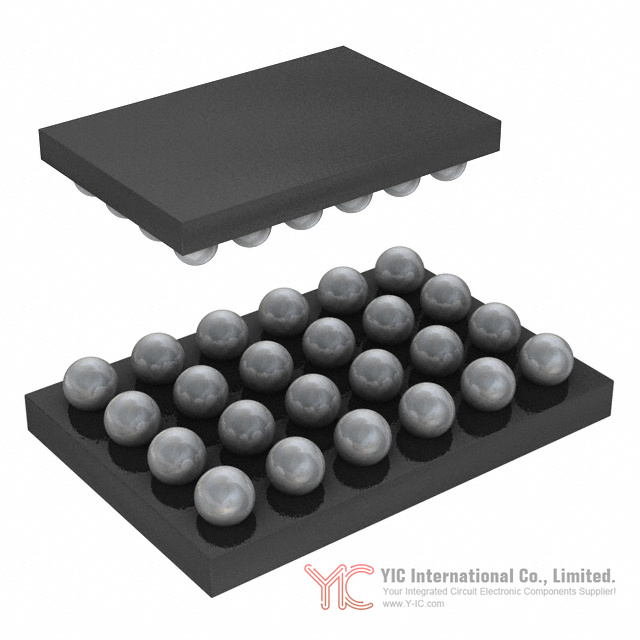

The MAX30112EWG+T features a miniaturized 24-bump WLP (wafer-level package) with a footprint of just 2.8mm x 2.0mm, 0.4mm ball pitch, fitting the stringent size requirements of wearables and mobile electronics. The package’s thermal management is characterized by a junction-to-ambient resistance of 49°C/W on a four-layer PCB, affording reliable temperature control even in compact, high-density assemblies.

The device is rated for a continuous operating temperature range from -40°C to +85°C, supporting deployment in both consumer and medical-grade applications. Storage up to +105°C and soldering profile up to +260°C ensure compatibility with standard SMT manufacturing processes.

Integration Guidelines for Including MAX30112EWG+T in System Designs

When evaluating the MAX30112EWG+T for inclusion in wearable or mobile designs, engineering teams should consider several practical integration factors:

LED selection and photodiode pairing: The wide current ranges and fine control accommodate multiple LED wavelengths and sizes, allowing adaptation to various form factors (wrist, ear, finger).

Power management: Dual voltage rails and dynamic power-down modes facilitate optimization for battery-driven products. Engineers should benchmark system-level standby and active power draw for extended battery life.

Digital interfacing: The I2C bus implementation simplifies connectivity to microcontrollers, but bus capacitance (up to 400pF) and signal rise/fall times should be tuned for reliable communication in dense circuit layouts.

Ambient light and noise rejection: Built-in hardware cancellation reduces system complexity, but final deployment in highly variable or harsh light environments may demand additional optical shielding or filtering depending on application.

Software development: Extensive interrupt mapping and batch data buffering (FIFO) allow for event-driven firmware architectures, supporting power-saving sleep modes and minimizing CPU utilization.

Mechanical constraints: The compact WLP package reduces board area requirements but demands precision in PCB layout and reflow process per manufacturer application notes.

Possible Alternative or Substitute Models for the MAX30112EWG+T

While the MAX30112EWG+T stands out for its power efficiency and integration features, engineers may consider alternative models depending on project constraints (cost, availability, pin count, integration level, etc.). Potential equivalents include:

Maxim Integrated MAX30102: Offers similar pulse-oximetry and heart rate sensing but with different package and integration options.

Analog Devices/MAXIM Integrated MAX86140/41: Provides advanced features for multi-channel biometric sensing and broader configuration capabilities.

Texas Instruments AFE4404: Targeted for medical-grade oximetry, with a distinct signal chain and physical interface.

Selection among these alternatives should be based on specific use-case requirements, compatibility with existing hardware, and supply chain considerations.

Conclusion

The MAX30112EWG+T, by Analog Devices Inc./Maxim Integrated, represents an advanced, highly integrated analog front-end solution tailored for wearable and health monitoring technologies. Its robust signal processing, ambient light handling, extensive configurability, and ultra-low power consumption make it an attractive choice for product design engineers targeting next-generation biometric measurement platforms. Careful analysis of system-level needs and consideration of application nuances will allow engineering teams to optimally leverage the MAX30112EWG+T’s capabilities or evaluate suitable alternatives for best-in-class performance in their end products.
