The Analog Devices ADL5505ACBZ-P7 is a high-accuracy, true RMS RF power detector designed for operation across a wide frequency range of 450 MHz to 6 GHz. Optimized for modern wireless infrastructure applications such as LTE and WiMAX, the device integrates into a compact 4-ball wafer-level chip scale package (WLCSP) and features low power consumption. The ADL5505ACBZ-P7 offers a straightforward interface with a linear output that allows engineers to precisely monitor RF power levels in both receiver and transmitter chains.

Main Functions and Fundamental Technologies of ADL5505ACBZ-P7

The ADL5505ACBZ-P7 is built on Analog Devices’ proprietary TruPwr and BiCMOS process technologies, providing true RMS power detection capabilities. Its internal architecture includes a modulation filter to ensure accurate power measurements even for high crest factor signals, such as those found in W-CDMA, CDMA2000, LTE, and WiMAX systems. With a detection accuracy of ±0.25 dB across temperature, the device stands out for its robust performance and reliability. The typical supply voltage ranges from 2.5 V to 3.3 V, with quiescent current consumption as low as 1.8 mA at 3.0 V, minimizing the overall power budget in compact and portable systems.

Electrical Specifications and RF Performance of ADL5505ACBZ-P7

The ADL5505ACBZ-P7 features a wide dynamic input range of -22 dBm to +15 dBm, ensuring compatibility with a variety of signal strengths found in modern communication systems. Its input impedance varies by frequency but is nominally 500 Ω, facilitating ease of integration into RF signal chains. The device’s RMS response remains linear over its operational input range, with typical conversion gain near 1.8 V/V RMS at 900 MHz. Output signals are robust, with voltage swing capabilities up to 2.5 V (when powered at 3.0 V and loaded above 10 kΩ), and the response times are tight at 3 μs for both pulse and power-up conditions. Engineers can expect minimal performance variation, with temperature coefficients as low as ±0.002 dB/°C, simplifying system calibration and maintenance.

Pinout Information and Packaging Specifications of ADL5505ACBZ-P7

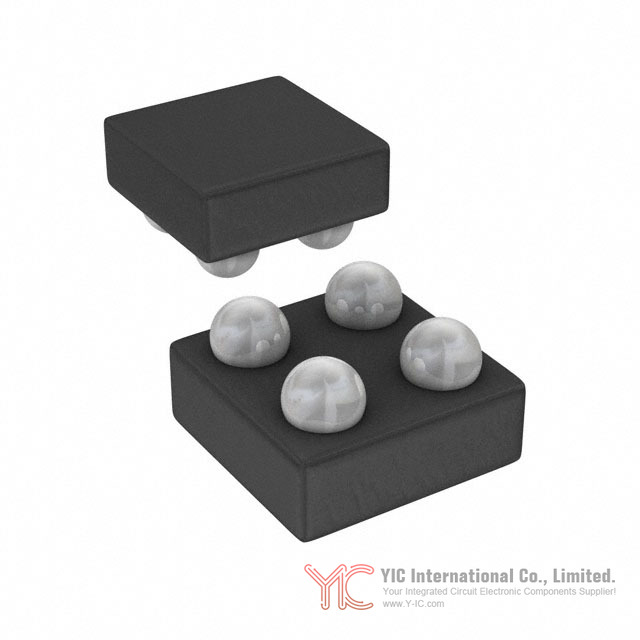

The ADL5505ACBZ-P7 is packaged in a 4-ball WLCSP measuring 0.8 mm × 0.8 mm, offering a minimal footprint for high-density PCB layouts. Its four pins include VPOS (power supply), RFIN (RF input, internally AC-coupled), COMM (device ground), and VRMS (output voltage proportional to detected RF power). This straightforward pinout simplifies routing and helps minimize implementation complexity, promoting ease of use during prototyping and mass production phases.

Use Cases and Application Examples of ADL5505ACBZ-P7

Typical use cases for the ADL5505ACBZ-P7 include real-time power monitoring in cellular base stations, wireless LAN infrastructure, and general-purpose RF measurement systems. Its ability to handle both simple and complex modulated waveforms with high accuracy makes it suitable for feedback loops in RF transmitters, automatic gain control (AGC) circuits, and test instrumentation. The detector is particularly valuable in environments dealing with high crest factor signals, where traditional peak or average detectors may fail to provide accurate power readings.

Design Guidelines and Integration Tips for ADL5505ACBZ-P7

Incorporating the ADL5505ACBZ-P7 into a design requires minimal external components, typically just an output filter capacitor to reduce residual ripple in the DC output. The internal architecture supports flexible adaptation to various RF environments, but engineers should consider PCB layout best practices to minimize couplings and losses at GHz frequencies. The device provides fast pulse and power-up response times, allowing integration in fast-switching or time-critical applications. Its consistent temperature performance and low process parameter variation simplify system-level calibration and post-production tuning.

Environmental Factors and Reliability Features of ADL5505ACBZ-P7

The ADL5505ACBZ-P7 operates over an industrial temperature range from -40°C to +85°C, supporting use in demanding indoor and outdoor installations. With built-in ESD protection, the device is robust against typical handling scenarios, though standard ESD precautions should still be observed to ensure reliability. It is fully compliant with RoHS3 directives and has a moisture sensitivity level (MSL) rating of 1 (unlimited floor life), supporting simplified supply chain and manufacturing procedures. Maximum junction temperature is specified at 125°C, and the device tolerates storage down to -65°C and up to +150°C.

Comparable or Alternative Models to ADL5505ACBZ-P7

For engineers and supply chain managers, it is prudent to consider alternatives or equivalent components during design or procurement. The ADL5505 series from Analog Devices may include variants with similar functionality but slightly different packaging or performance characteristics. Other industry-standard true RMS RF detectors from prominent manufacturers covering similar frequency and dynamic ranges, with comparable supply voltage ranges and linearity, may also serve as potential alternatives. Detailed cross-evaluations should factor in differences in input impedance, package size, supply current, and long-term availability to ensure seamless integration and supply resilience.

Conclusion

The Analog Devices ADL5505ACBZ-P7 is a specialized, high-precision true RMS RF power detector designed for contemporary RF and wireless infrastructure systems. Its wide frequency coverage, excellent temperature and linearity characteristics, and ultra-compact package facilitate straightforward system integration for power monitoring tasks. By understanding its core operation, integration best practices, and available alternatives, engineers and procurement teams can make informed decisions to maximize performance and reliability in their RF designs.
